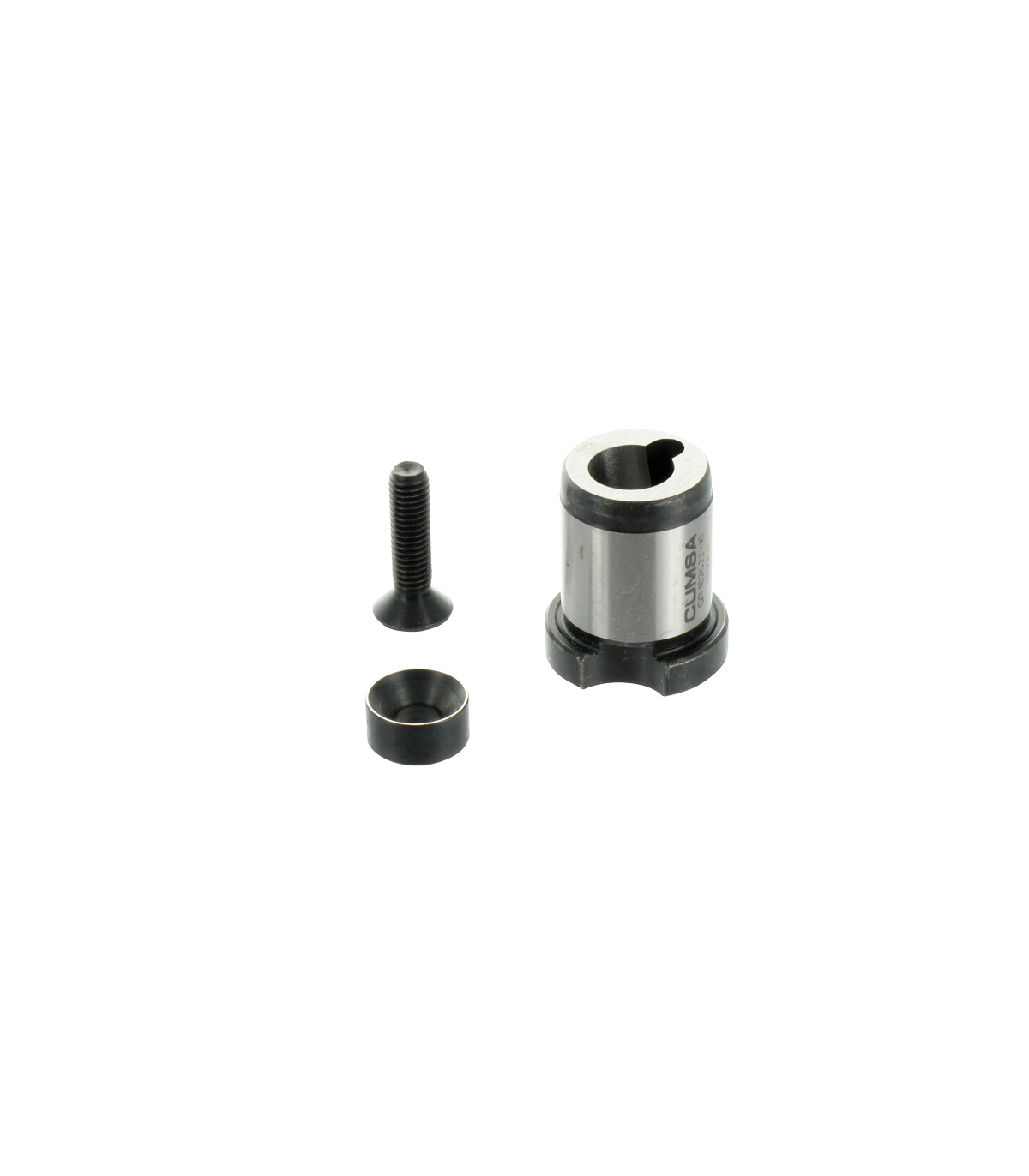

Ce guidage de verrouillage élimine les usinages inclinés dans le moule, permettant d'effectuer tous les usinages en une seule opération.
Elle est réalisée avec deux angles de 10 et 15°, ainsi que différents diamètres.
Read moreShow less
Elle est réalisée avec deux angles de 10 et 15°, ainsi que différents diamètres.
What angles are available?
10º and 15º.
What stroke is achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| GR.182622-10 | GI.010075 | 7.5mm. (0.295") |
| GI.010090 | 10.2mm. (0.402") | |
| GI.010105 | 12.8mm. (0.504") | |
| GR.182622-15 | GI.010075 | 11.2mm. (0.441") |
| GI.010090 | 15.1mm. (0.594") | |
| GI.010105 | 19mm. (0.748") | |
| GR.222826-10 | GI.012095 | 10.6mm. (0.417") |
| GI.012110 | 13.2mm. (0.520") | |
| GI.012130 | 16.6mm. (0.654") | |
| GR.222826-15 | GI.012095 | 15.6mm. (0.614") |
| GI.012110 | 19.5mm. (0.768") | |
| GI.012130 | 20.5mm. (0.807") | |
| GR.283432-10 | GI.016115 | 12.7mm. (0.500") |
| GI.016135 | 16.1mm. (0.634") | |
| GI.016160 | 20.5mm. (0.807") | |
| GR.283432-15 | GI.016115 | 18.8mm. (0.740") |
| GI.016135 | 23.9mm. (0.941") | |
| GI.016160 | 30.4mm. (1.197") | |
| GR.344038-10 | GI.020140 | 15.4mm. (0.606") |
| GI.020165 | 19.9mm. (0.783") | |
| GI.020190 | 24.3mm. (0.957") | |
| GR.344038-15 | GI.020140 | 23.1mm. (0.909") |
| GI.020165 | 29.6mm. (1.165") | |
| GI.020190 | 36mm. (1.417") | |
| GR.424546-10 | GI.024170 | 19.6mm. (0.772") |
| GI.024195 | 23.9mm. (0.941") | |
| GI.024220 | 28.1mm. (1.106") | |
| GR.424546-15 | GI.024170 | 29.1mm. (1.146") |
| GI.024195 | 35.3mm. (1.390") | |
| GI.024220 | 41.7mm. (1.642") | |
| GR.465050-10 | GI.028200 | 23.6mm. (0.929") |
| GI.028225 | 28mm. (1.102") | |
| GI.028250 | 32.3mm. (1.1272") | |
| GR.465050-15 | GI.028200 | 35mm. (1.378") |
| GI.028225 | 41.5mm. (1.634") | |
| GI.028250 | 48mm. (1.890") |
What is the TS for?
To key the Angle Pin Housing to prevent rotation.
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.7242 – 58 ± 2 HRC.
