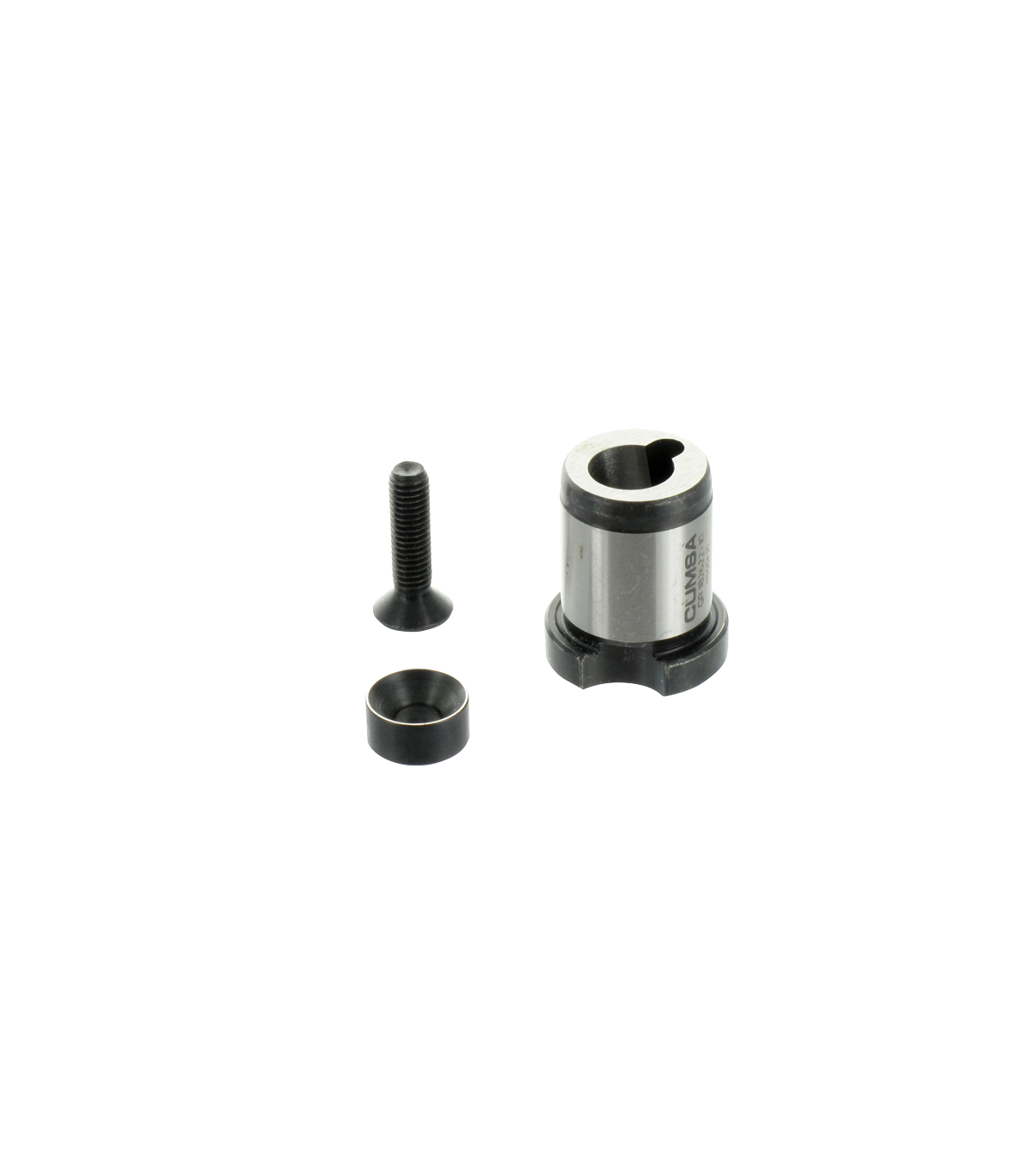

Tento cep obsahuje predvrtaný otvor pro úhlový cep, který eliminuje nutnost vrtání v úhlu do formové sady.
Je pouze nutné pripravit vyvrtaný otvor ve forme z celní strany, který tuto jednotku pojme.
Tato jednotka se dodává v provedeních 10° n ebo 15°.
Read moreShow less
Je pouze nutné pripravit vyvrtaný otvor ve forme z celní strany, který tuto jednotku pojme.
Tato jednotka se dodává v provedeních 10° n ebo 15°.
What angles are available?
10º and 15º.
What stroke is achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| GR.182622-10 | GI.010075 | 7.5mm. (0.295") |
| GI.010090 | 10.2mm. (0.402") | |
| GI.010105 | 12.8mm. (0.504") | |
| GR.182622-15 | GI.010075 | 11.2mm. (0.441") |
| GI.010090 | 15.1mm. (0.594") | |
| GI.010105 | 19mm. (0.748") | |
| GR.222826-10 | GI.012095 | 10.6mm. (0.417") |
| GI.012110 | 13.2mm. (0.520") | |
| GI.012130 | 16.6mm. (0.654") | |
| GR.222826-15 | GI.012095 | 15.6mm. (0.614") |
| GI.012110 | 19.5mm. (0.768") | |
| GI.012130 | 20.5mm. (0.807") | |
| GR.283432-10 | GI.016115 | 12.7mm. (0.500") |
| GI.016135 | 16.1mm. (0.634") | |
| GI.016160 | 20.5mm. (0.807") | |
| GR.283432-15 | GI.016115 | 18.8mm. (0.740") |
| GI.016135 | 23.9mm. (0.941") | |
| GI.016160 | 30.4mm. (1.197") | |
| GR.344038-10 | GI.020140 | 15.4mm. (0.606") |
| GI.020165 | 19.9mm. (0.783") | |
| GI.020190 | 24.3mm. (0.957") | |
| GR.344038-15 | GI.020140 | 23.1mm. (0.909") |
| GI.020165 | 29.6mm. (1.165") | |
| GI.020190 | 36mm. (1.417") | |
| GR.424546-10 | GI.024170 | 19.6mm. (0.772") |
| GI.024195 | 23.9mm. (0.941") | |
| GI.024220 | 28.1mm. (1.106") | |
| GR.424546-15 | GI.024170 | 29.1mm. (1.146") |
| GI.024195 | 35.3mm. (1.390") | |
| GI.024220 | 41.7mm. (1.642") | |
| GR.465050-10 | GI.028200 | 23.6mm. (0.929") |
| GI.028225 | 28mm. (1.102") | |
| GI.028250 | 32.3mm. (1.1272") | |
| GR.465050-15 | GI.028200 | 35mm. (1.378") |
| GI.028225 | 41.5mm. (1.634") | |
| GI.028250 | 48mm. (1.890") |
What is the TS for?
To key the Angle Pin Housing to prevent rotation.
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.7242 – 58 ± 2 HRC.
