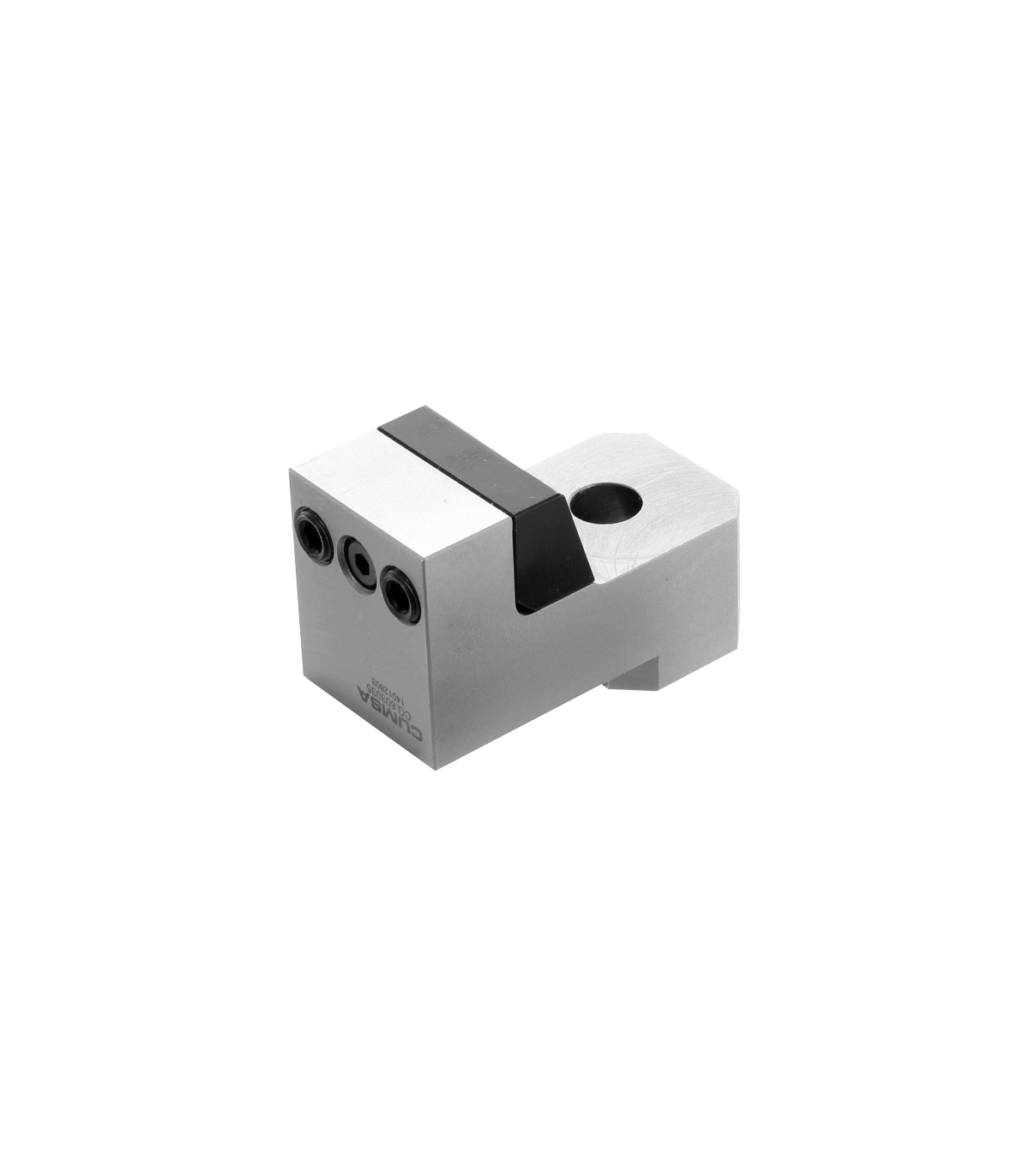

Cet élément monobloc élimine la nécessité de réaliser un usinage incliné.
Il est inclus une barre de verrouillage réglable qui permet de réaliser un ajustement lorsque le moule est fermé, en dévissant la vis central et vissant les vis de fermetur e.
Read moreShow less
Il est inclus une barre de verrouillage réglable qui permet de réaliser un ajustement lorsque le moule est fermé, en dévissant la vis central et vissant les vis de fermetur e.

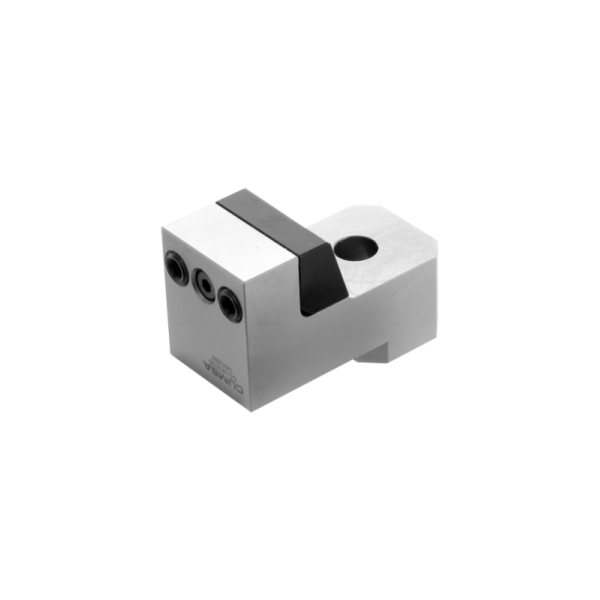

- CG603035 – 180.000N / 18.356 Kg (40.419lb)
- CG604035 – 320.000N / 36.712 Kg (80.839lb)
- CG754049 – 320.000N / 36.712 Kg (80.839lb)
- CG604075 – 480.000N / 48.950 Kg (107.787lb)
- GI010075 – 12mm (0.472”)
- GI010090 – 15mm (0.590”)
- GI010105 – 18mm (0.708”)
Is only one lateral guide on the cam enough?
Yes, as the base will align with the cam slide perfectly, the guide is only to keep the cam slide in position.
What is the slide retainer made of?
It is a magnetic disc with a stopper that will hold the cam slide in position when the indent made by the customer on the cam slide aligns with it.
What load can the adjustable heel support?
How much can I adjust the heel?
Maximum 1.00mm (0.039”)
What stroke is achievable with the Heel Unit?
It depends on the angle pin that is used:
Where can I find the angle pins for this set?
On the GI catalogue page.
