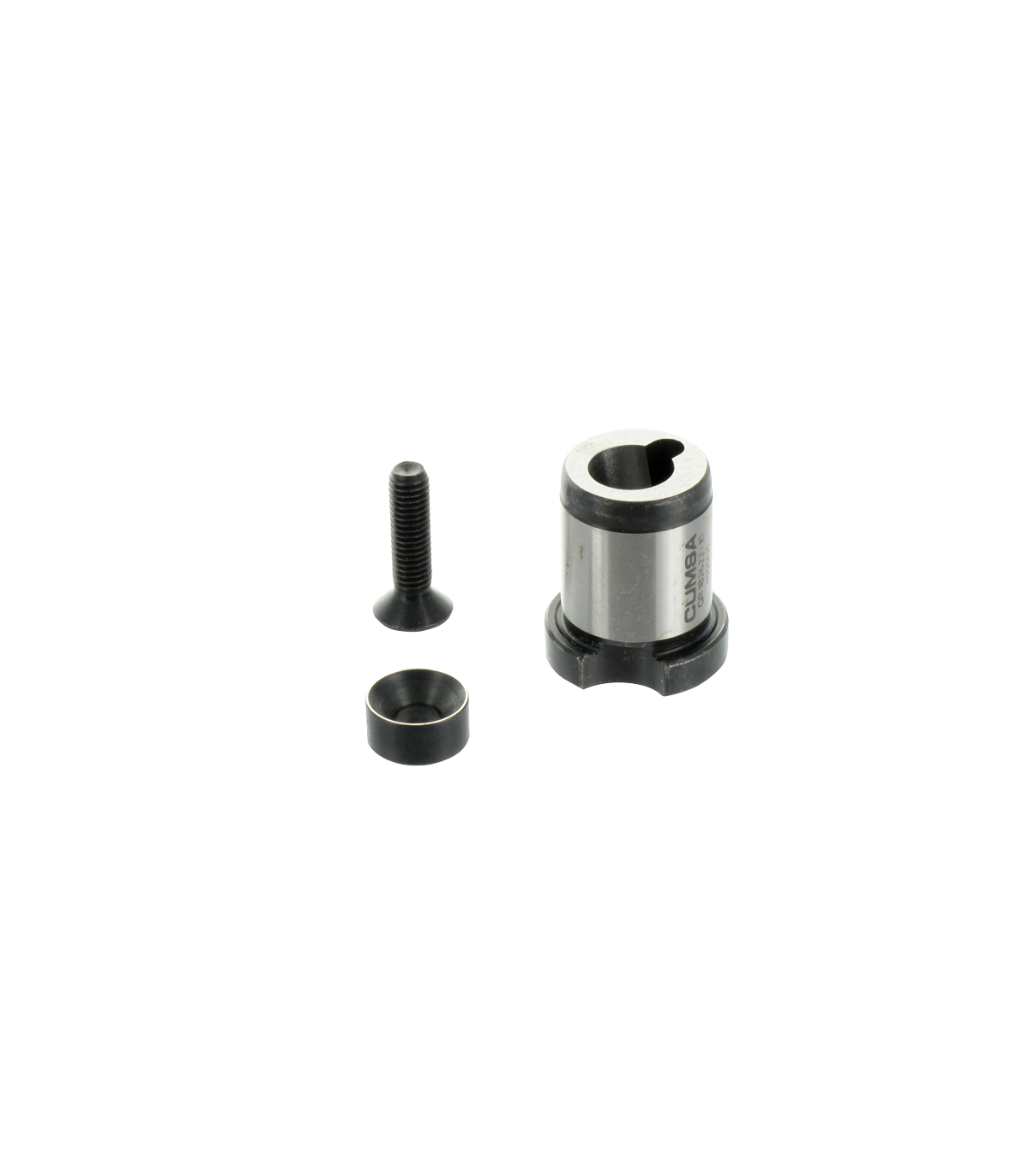

This unit incorporates a predrilled hole for the angle pin which eliminates the need to angularly drill the die set.
The die set only needs to be drilled from the front to accept this unit. The unit comes in either 10°or 15°.
Read moreShow less
The die set only needs to be drilled from the front to accept this unit. The unit comes in either 10°or 15°.
What angles are available?
10º and 15º.
What stroke is achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| GR.182622-10 | GI.010075 | 7.5mm. (0.295") |
| GI.010090 | 10.2mm. (0.402") | |
| GI.010105 | 12.8mm. (0.504") | |
| GR.182622-15 | GI.010075 | 11.2mm. (0.441") |
| GI.010090 | 15.1mm. (0.594") | |
| GI.010105 | 19mm. (0.748") | |
| GR.222826-10 | GI.012095 | 10.6mm. (0.417") |
| GI.012110 | 13.2mm. (0.520") | |
| GI.012130 | 16.6mm. (0.654") | |
| GR.222826-15 | GI.012095 | 15.6mm. (0.614") |
| GI.012110 | 19.5mm. (0.768") | |
| GI.012130 | 20.5mm. (0.807") | |
| GR.283432-10 | GI.016115 | 12.7mm. (0.500") |
| GI.016135 | 16.1mm. (0.634") | |
| GI.016160 | 20.5mm. (0.807") | |
| GR.283432-15 | GI.016115 | 18.8mm. (0.740") |
| GI.016135 | 23.9mm. (0.941") | |
| GI.016160 | 30.4mm. (1.197") | |
| GR.344038-10 | GI.020140 | 15.4mm. (0.606") |
| GI.020165 | 19.9mm. (0.783") | |
| GI.020190 | 24.3mm. (0.957") | |
| GR.344038-15 | GI.020140 | 23.1mm. (0.909") |
| GI.020165 | 29.6mm. (1.165") | |
| GI.020190 | 36mm. (1.417") | |
| GR.424546-10 | GI.024170 | 19.6mm. (0.772") |
| GI.024195 | 23.9mm. (0.941") | |
| GI.024220 | 28.1mm. (1.106") | |
| GR.424546-15 | GI.024170 | 29.1mm. (1.146") |
| GI.024195 | 35.3mm. (1.390") | |
| GI.024220 | 41.7mm. (1.642") | |
| GR.465050-10 | GI.028200 | 23.6mm. (0.929") |
| GI.028225 | 28mm. (1.102") | |
| GI.028250 | 32.3mm. (1.1272") | |
| GR.465050-15 | GI.028200 | 35mm. (1.378") |
| GI.028225 | 41.5mm. (1.634") | |
| GI.028250 | 48mm. (1.890") |
What is the TS for?
To key the Angle Pin Housing to prevent rotation.
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.7242 – 58 ± 2 HRC.
