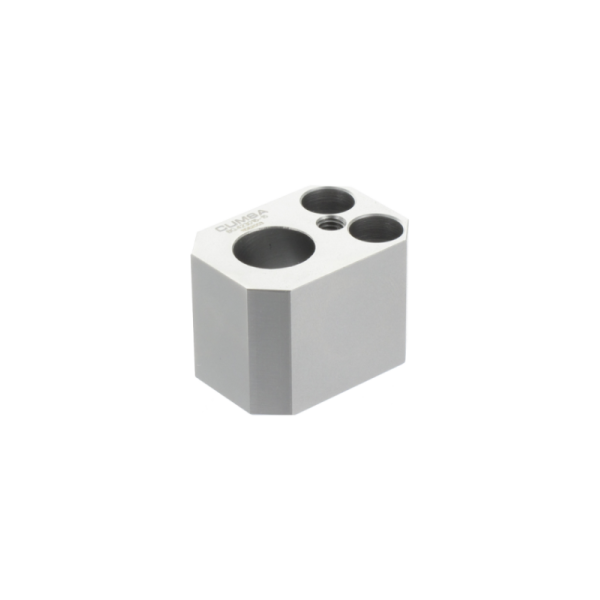

This is similar to the round Angle Pin Housing (GR) but allows the fitting of angle pins from 15°or 20°.
This unit is bigger than the GR to allow for the greater angles and it requires a square pocket to be machined in the die set.
Read moreShow less
This unit is bigger than the GR to allow for the greater angles and it requires a square pocket to be machined in the die set.
What angles are available?
15º and 20º.
What strokes are achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| BG.423016-15 | GI.016115 | 19.8mm. (0.780") |
| GI.016135 | 25mm. (0.984") | |
| GI.016160 | 25mm. (1.240") | |
| BG.423016-20 | GI.016115 | 26mm. (1.024") |
| GI.016135 | 32.8mm. (1.291") | |
| GI.016160 | 41.4mm. (1.630") | |
| BG.504020-15 | GI.020140 | 24.2mm. (0.953") |
| GI.020165 | 30.7mm. (1.209") | |
| GI.020190 | 37.1mm. (1.461") | |
| BG.504020-20 | GI.020140 | 31.7mm. (1.248") |
| GI.020165 | 40.2mm. (1.583") | |
| GI.020190 | 48.7mm. (1.917") | |
| BG.554024-15 | GI.024170 | 30.4mm. (1.197") |
| GI.024195 | 36.9mm. (1.453") | |
| GI.024220 | 43.3mm. (1.705") | |
| BG.554024-20 | GI.024170 | 39.9mm. (1.571") |
| GI.024195 | 48.4mm. (1.906") | |
| GI.024220 | 57mm. (2.244") | |
| BG.655028-15 | GI.028200 | 36.4mm. (1.433") |
| GI. 028225 | 42.9mm. (1.689") | |
| GI. 028250 | 49.3mm. (1.941") | |
| BG. 655028-20 | GI. 028200 | 47.8mm. (1.571") |
| GI. 028225 | 56.3mm. (1.906") | |
| GI. 028250 | 64.9mm. (2.244") |
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.2312 – 32 ± 2 HRC (AISI/SAE: P20+S)
