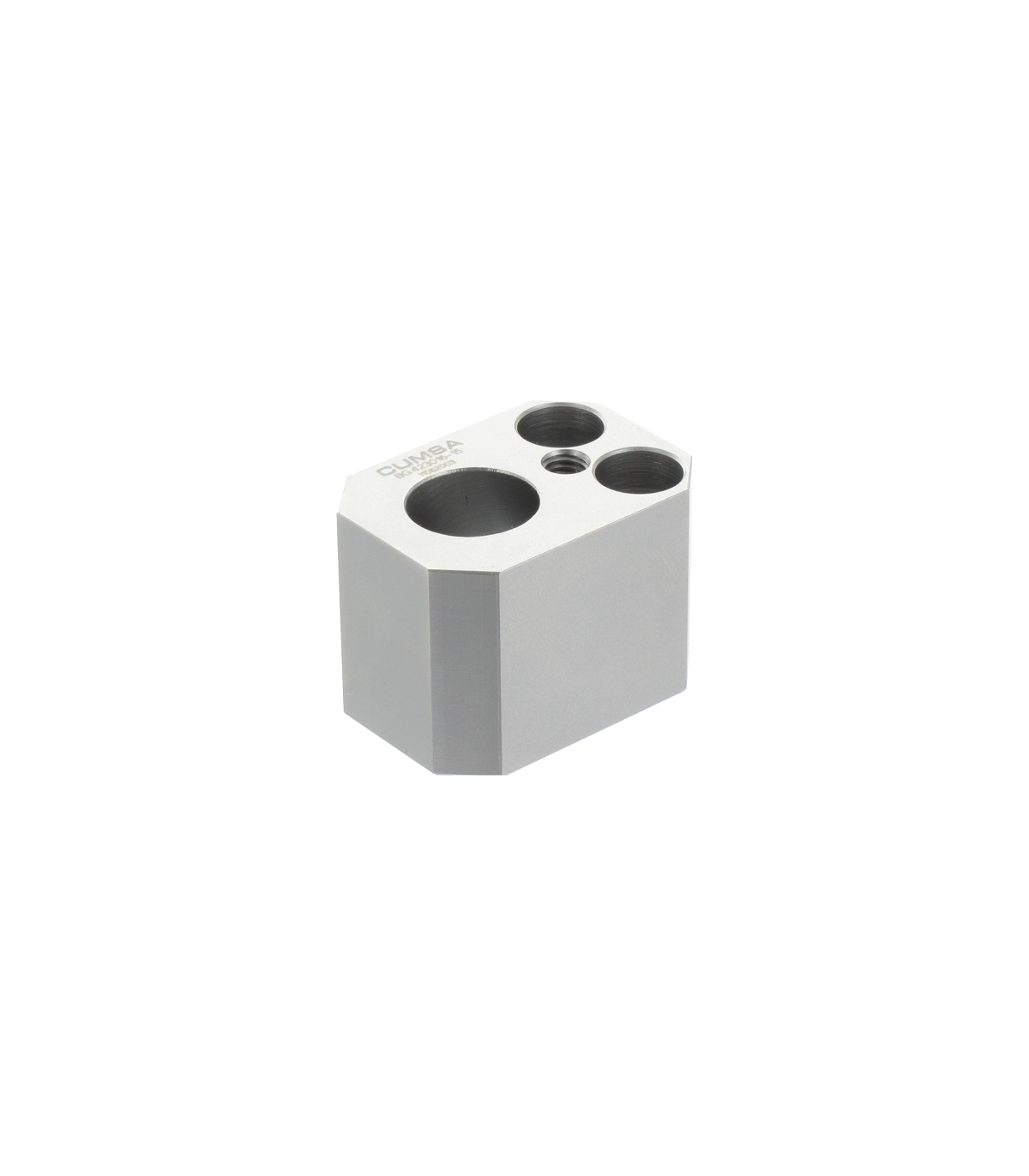

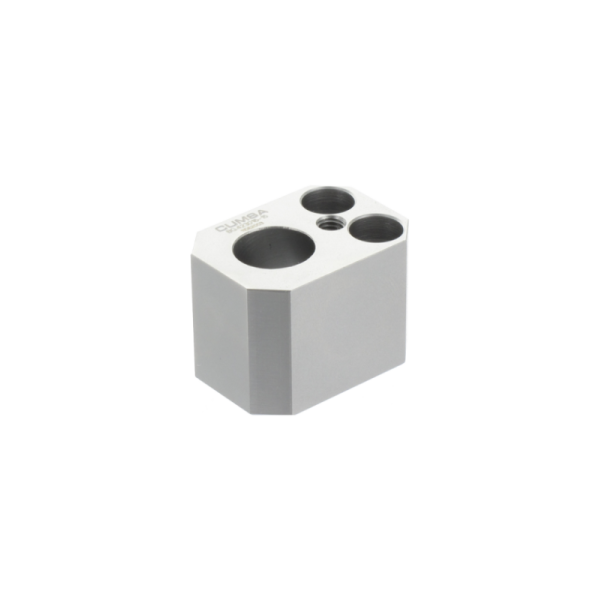

Podobné jako kulaté Pouzdro úhlového cepu (GR), avšak toto umožnuje osazení úhlovými cepy s úhlem od 15°nebo 20°.
Tato jednotka je vetší než GR, aby umožnovala využívání vetších úhlu, a vyžaduje vytvorení pravoúhlého pouzdra ve forme.
Read moreShow less
Tato jednotka je vetší než GR, aby umožnovala využívání vetších úhlu, a vyžaduje vytvorení pravoúhlého pouzdra ve forme.
What angles are available?
15º and 20º.
What strokes are achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| BG.423016-15 | GI.016115 | 19.8mm. (0.780") |
| GI.016135 | 25mm. (0.984") | |
| GI.016160 | 25mm. (1.240") | |
| BG.423016-20 | GI.016115 | 26mm. (1.024") |
| GI.016135 | 32.8mm. (1.291") | |
| GI.016160 | 41.4mm. (1.630") | |
| BG.504020-15 | GI.020140 | 24.2mm. (0.953") |
| GI.020165 | 30.7mm. (1.209") | |
| GI.020190 | 37.1mm. (1.461") | |
| BG.504020-20 | GI.020140 | 31.7mm. (1.248") |
| GI.020165 | 40.2mm. (1.583") | |
| GI.020190 | 48.7mm. (1.917") | |
| BG.554024-15 | GI.024170 | 30.4mm. (1.197") |
| GI.024195 | 36.9mm. (1.453") | |
| GI.024220 | 43.3mm. (1.705") | |
| BG.554024-20 | GI.024170 | 39.9mm. (1.571") |
| GI.024195 | 48.4mm. (1.906") | |
| GI.024220 | 57mm. (2.244") | |
| BG.655028-15 | GI.028200 | 36.4mm. (1.433") |
| GI. 028225 | 42.9mm. (1.689") | |
| GI. 028250 | 49.3mm. (1.941") | |
| BG. 655028-20 | GI. 028200 | 47.8mm. (1.571") |
| GI. 028225 | 56.3mm. (1.906") | |
| GI. 028250 | 64.9mm. (2.244") |
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.2312 – 32 ± 2 HRC (AISI/SAE: P20+S)
