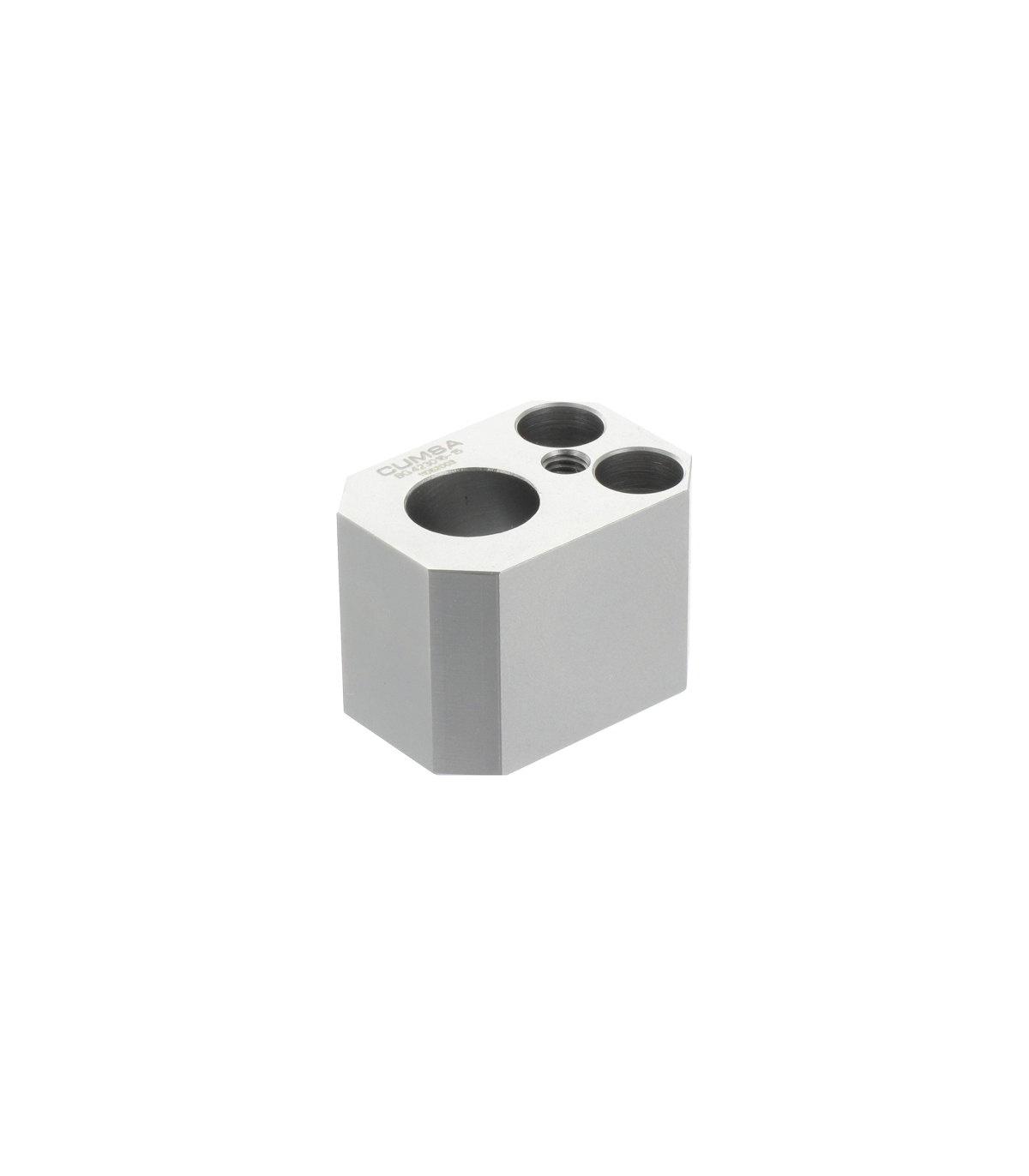

所有孔位加工部分与型面形成90°角，免去了复杂的斜角加工工序，可选购斜角为15°和20°两种规格。拆装简易，无需下模更换
Read moreShow less
可选角度？
15º and 20º.
斜顶行程？
由选用斜顶长度和斜顶导套的角度决定：
| Ref | Angle Pin | Stroke |

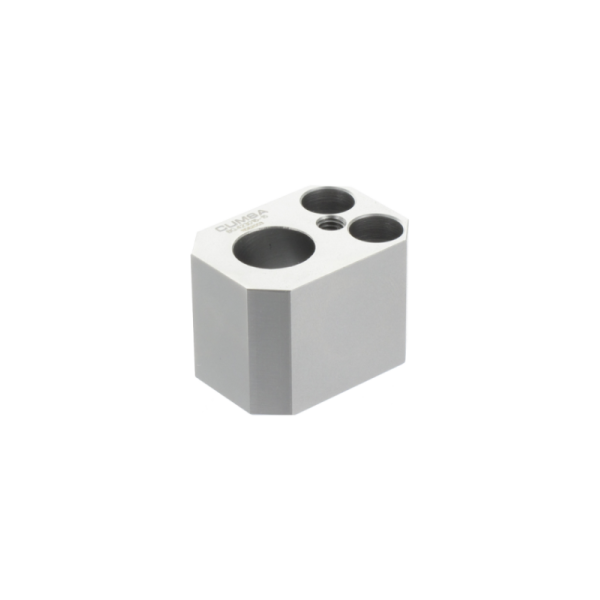

| BG.423016-15 | GI.016115 | 19.8mm. (0.780") |
| GI.016135 | 25mm. (0.984") | |
| GI.016160 | 25mm. (1.240") | |
| BG.423016-20 | GI.016115 | 26mm. (1.024") |
| GI.016135 | 32.8mm. (1.291") | |
| GI.016160 | 41.4mm. (1.630") | |
| BG.504020-15 | GI.020140 | 24.2mm. (0.953") |
| GI.020165 | 30.7mm. (1.209") | |
| GI.020190 | 37.1mm. (1.461") | |
| BG.504020-20 | GI.020140 | 31.7mm. (1.248") |
| GI.020165 | 40.2mm. (1.583") | |
| GI.020190 | 48.7mm. (1.917") | |
| BG.554024-15 | GI.024170 | 30.4mm. (1.197") |
| GI.024195 | 36.9mm. (1.453") | |
| GI.024220 | 43.3mm. (1.705") | |
| BG.554024-20 | GI.024170 | 39.9mm. (1.571") |
| GI.024195 | 48.4mm. (1.906") | |
| GI.024220 | 57mm. (2.244") | |
| BG.655028-15 | GI.028200 | 36.4mm. (1.433") |
| GI. 028225 | 42.9mm. (1.689") | |
| GI. 028250 | 49.3mm. (1.941") | |
| BG. 655028-20 | GI. 028200 | 47.8mm. (1.571") |
| GI. 028225 | 56.3mm. (1.906") | |
| GI. 028250 | 64.9mm. (2.244") |
【】】
起到只用一个螺丝便可拆除斜顶导套的作用，同时也是用于固定斜顶导在模具上。
材质？
1.2312 – 32 ± 2 HRC (AISI/SAE: P20+S)
