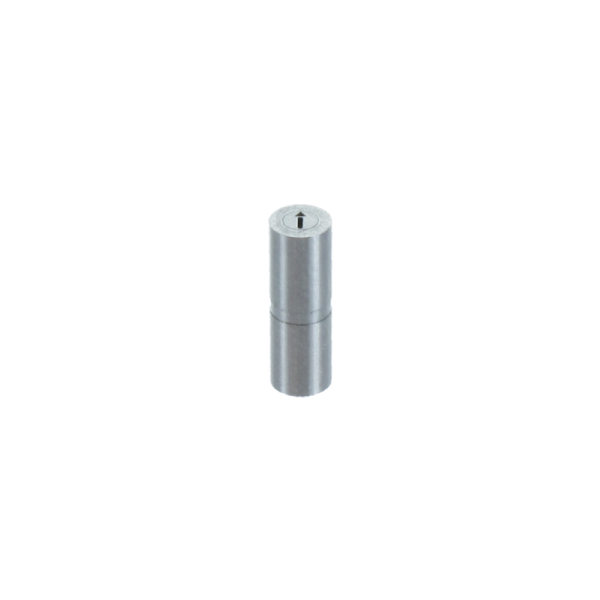

This date stamp features 100% stainless steel components and is available in 8 diameters to fit a wide range of applications.
Unlike conventional date stamps that require access from the back of the mold, the FP can be easily extracted directly from the parting line from the front of the mold with the EF tool, making it especially suitable for applications with cooling circuits positioned beneath the date stamp.
Trusted quality product since 1993, it offers standard engravings (days, months, months + year, years) with sharp, laser-etched precision for maximum readability.
Custom engravings are available for layers, or specific needs.
The constant level between the insert and body and the exact positioning of the outer numbers ensure superior part quality.
What is the maximum temperature that a Date Stamp can withstand?
The Date Stamp can work up to 150 °C (302°F).
How deep is the engraving on Date Stamps?
| Ref | Numbers | Arrow |
| FP04.... IA22…. | 0.15mm. (0.006") | 0.35mm. (0.014") |
| FP05.... IA30 | 0.15mm. (0.006") | 0.40mm. (0.016") |
| FP06.... IA32.... | 0.15mm. (0.006") | 0.40mm. (0.016") |
| FP08.... IA47.... | 0.15mm. (0.006") | 0.40mm. (0.016") |
| FP10.... IA57.... | 0.15mm. (0.006") | 0.50mm. (0.020") |
| FP12.... IA67.... | 0.15mm. (0.006") | 0.50mm. (0.020") |
| FP16.... IA87.... | 0.15mm. (0.006") | 0.70mm. (0.028") |
| FP20.... IA107... | 0.15mm. (0.006") | 0.70mm. (0.028") |
What kind of thread is on Date Stamps and Inserts?
| Ref | Arrow |
| FP04.... IA22.... | M1.6x0.35mm. |
| FP05.... IA30.... | M1.6x0.35mm. |
| FP06.... IA32.... | M2.5x0.45mm. |
| FP08.... IA47.... | M3.0x0.50mm. |
| FP10.... IA57.... | M3.0x0.50mm. |
| FP12.... IA67.... | M3.5x0.60mm. |
| FP16.... IA87.... | M3.5x0.60mm. |
| FP20.... IA10.... | M3.5x0.60mm. |
The Insert turns within the Date Stamp when injecting. What is the reason for this?
In order to place the Insert correctly into the Date Stamp, turn it with a screwdriver clockwise until you hear a "click". Once the Insert is securely placed, turn it clockwise for changing the indication. To remove the Insert, turn it with a screwdriver counter-clockwise.
Which is the recommended screwdriver width to manipulate the CUMSA date stamps / inserts?
| Ref | Screwdriver |
| FP04.... IA22.... | 1.2mm x 0.2mm. (0.047" x 0.0079") |
| FP05.... IA30.... | 1.5mm. x 0.25mm. (0.059" x 0.0098") |
| FP06.... IA32.... | 1.8mm. x 0.3mm. (0.071" x 0.0118") |
| FP08.... IA47.... | 2mm. x 0.4mm. (0.079" x 0.0157") |
| FP10.... IA57.... | 2.5mm. x 0.4mm. (0.098" x 0.0157") |
| FP12.... IA67.... | 3mm. x 0.5mm. (0.118" x 0.0197") |
| FP16.... IA87.... | 4mm. x 0.8mm. (0.157" x 0.0315") |
| FP20.... IA10.... | 4mm. x 0.8mm. (0.157" x 0.0315") |
Are special engravings possible?
Yes, you can request a special engravings on all our date stamps.
