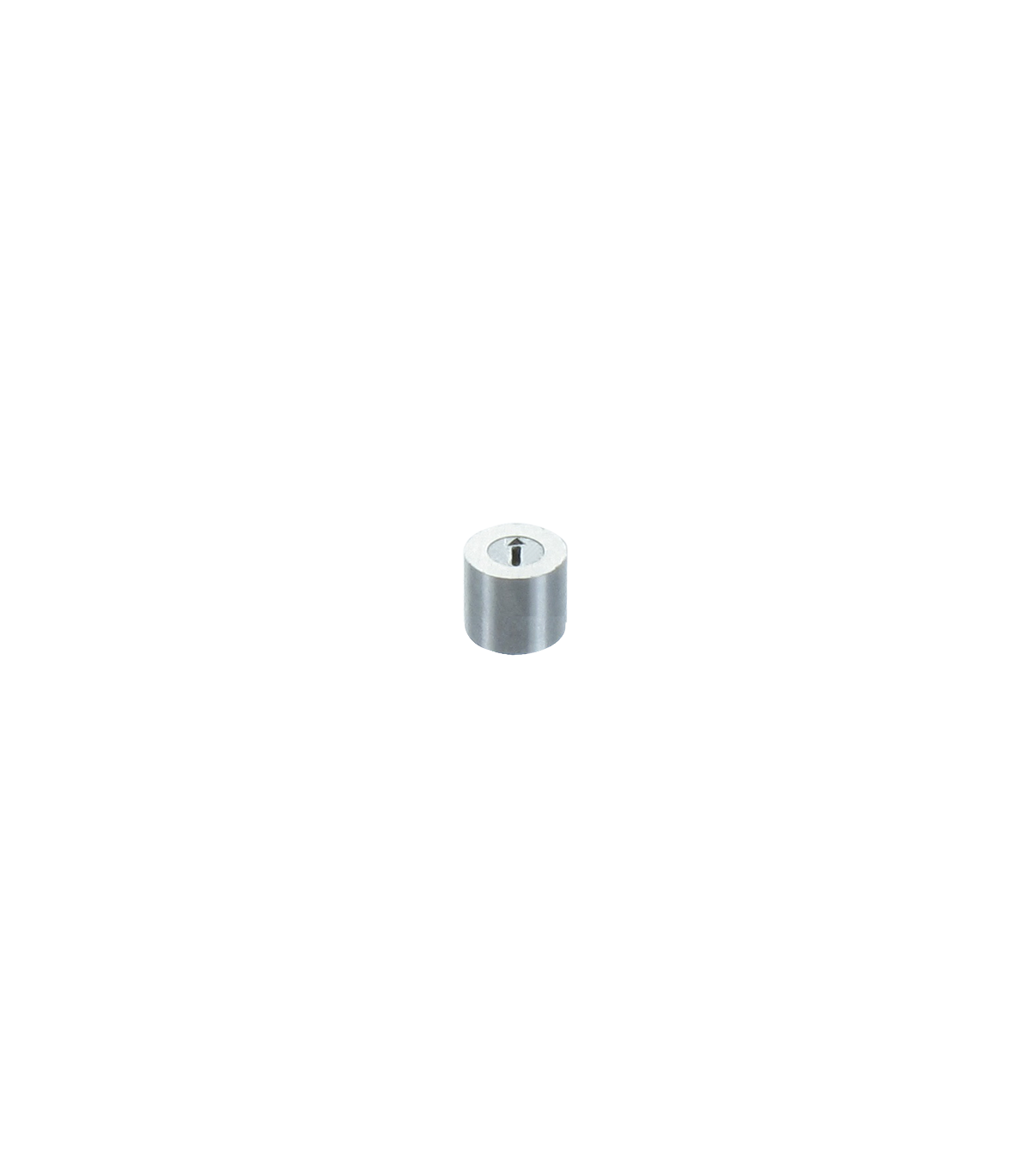

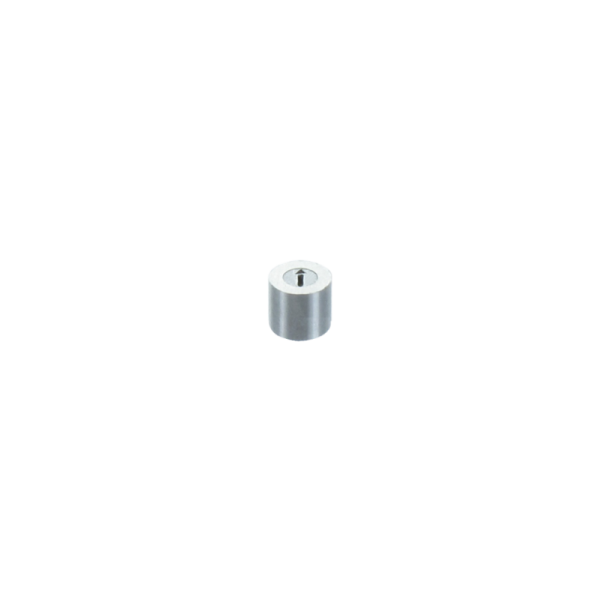

This is a permanent date stamp where only the central year insert is changed.
The month is changed by using a screwdriver.
Completely stainless.
Read moreShow less
The month is changed by using a screwdriver.
Completely stainless.
Which is the recommended screwdriver width to manipulate the CUMSA date stamps / inserts?
| Ref | Screwdriver |
| FX04.... IX21.... | 1.2mm x 0.2mm. (0.047" x 0.0079") |
| FX05.... IX31.... | 1.5mm. x 0.25mm. (0.059" x 0.0098") |
| FX06.... IX32.... | 1.8mm. x 0.3mm. (0.071" x 0.0118") |
| FX08.... IX47.... | 2mm. x 0.4mm. (0.079" x 0.0157") |
| FX10.... IX57.... | 2.5mm. x 0.4mm. (0.098" x 0.0157") |
| FX12.... IX67.... | 3mm. x 0.5mm. (0.118" x 0.0197") |
Are special engravings possible?
Yes, you can request a special engravings on all our date stamps.
Can I remove the date stamp from the tool?
Yes, on our catalogue page we indicate the size of the hole (E dimension) to be made before installing, the date stamp can then be removed using the appropiate ejector.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
How deep is the engraving on the Xtra Date Stamp - FX?
| Ref | Numbers | Line |
| FX04.... IX21.... | 0,15mm. (0.006") | 0,35mm. (0.014") |
| FX05.... IX31.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX06.... IX32.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX08.... IX47.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX10.... IX57.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
| FX12.... IX67.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
