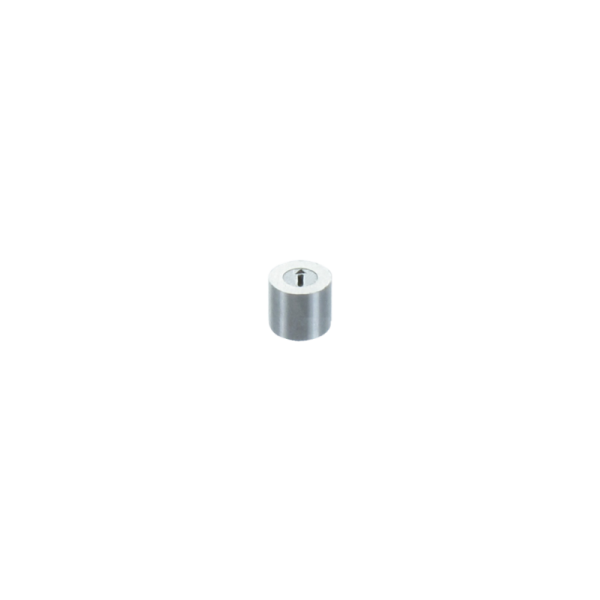

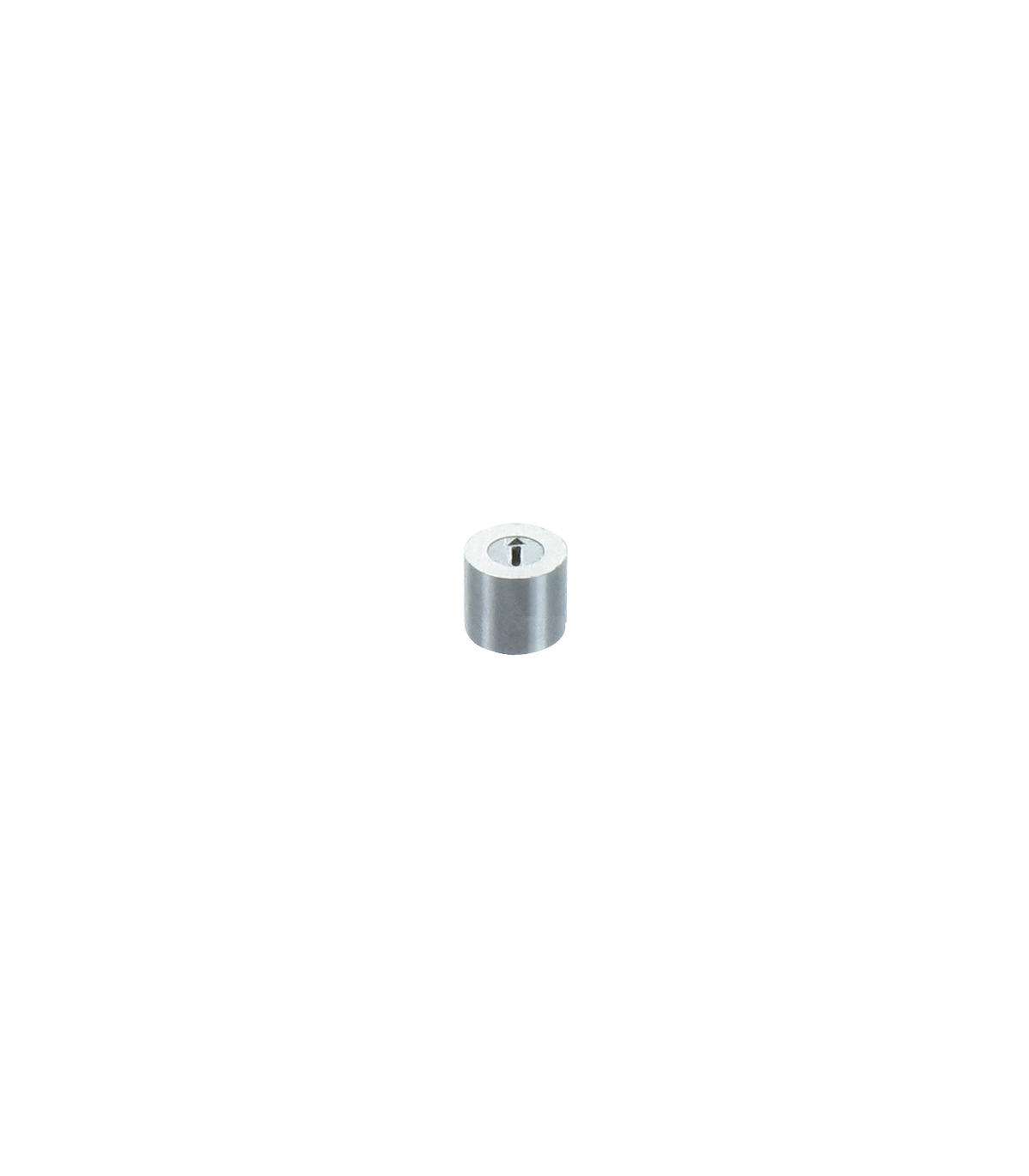

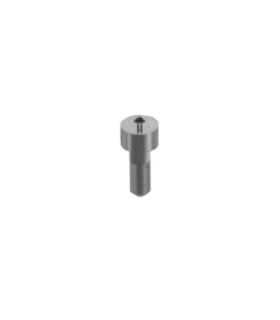

Jedná se o stálou datumovku, ve které se mení pouze stredová vložka s údajem o roce.
Údaj o mesíci se mení pomocí šroubováku. Kompletne nerezové provedení.
Read moreShow less
Údaj o mesíci se mení pomocí šroubováku. Kompletne nerezové provedení.
Which is the recommended screwdriver width to manipulate the CUMSA date stamps / inserts?
| Ref | Screwdriver |
| FX04.... IX21.... | 1.2mm x 0.2mm. (0.047" x 0.0079") |
| FX05.... IX31.... | 1.5mm. x 0.25mm. (0.059" x 0.0098") |
| FX06.... IX32.... | 1.8mm. x 0.3mm. (0.071" x 0.0118") |
| FX08.... IX47.... | 2mm. x 0.4mm. (0.079" x 0.0157") |
| FX10.... IX57.... | 2.5mm. x 0.4mm. (0.098" x 0.0157") |
| FX12.... IX67.... | 3mm. x 0.5mm. (0.118" x 0.0197") |
Are special engravings possible?
Yes, you can request a special engravings on all our date stamps.
Can I remove the date stamp from the tool?
Yes, on our catalogue page we indicate the size of the hole (E dimension) to be made before installing, the date stamp can then be removed using the appropiate ejector.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
How deep is the engraving on the Xtra Date Stamp - FX?
| Ref | Numbers | Line |
| FX04.... IX21.... | 0,15mm. (0.006") | 0,35mm. (0.014") |
| FX05.... IX31.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX06.... IX32.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX08.... IX47.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX10.... IX57.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
| FX12.... IX67.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
