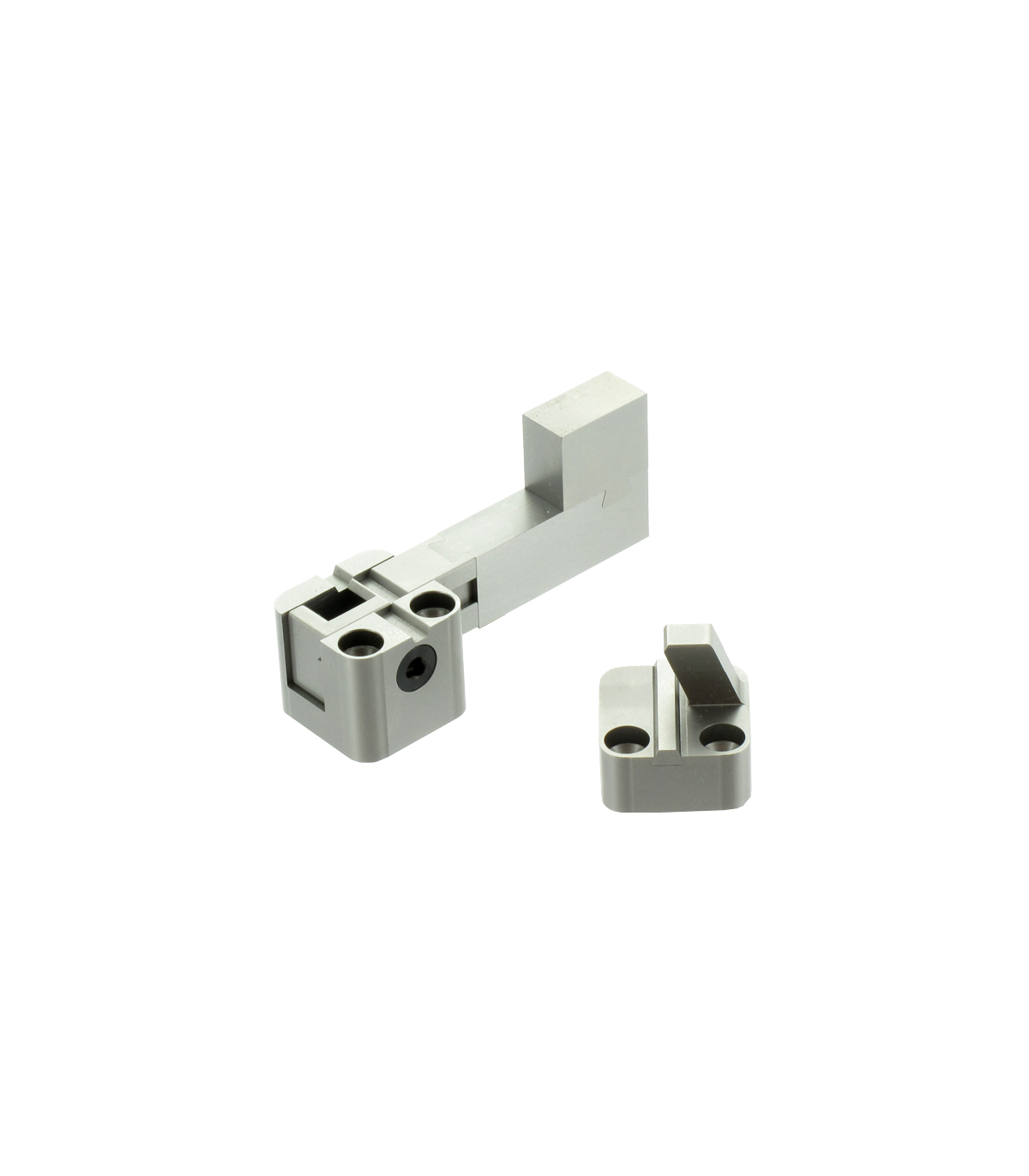

Mouvement inverse. Ideal pour demouler des contres depouilles internes.
Pack compact avec des courses jusqu´a 5 mm.
Le chariot se compose de 2 parties distinctes, pour une meilleure flexibilite dans l’application.
Tous les usinages sont a 90° par rapport au plan de joint.
Doigt de demoulage et butee inclus dans l’ensemble.
Read moreShow less
Pack compact avec des courses jusqu´a 5 mm.
Le chariot se compose de 2 parties distinctes, pour une meilleure flexibilite dans l’application.
Tous les usinages sont a 90° par rapport au plan de joint.
Doigt de demoulage et butee inclus dans l’ensemble.
- UU081220 – 1,40 Kg (3,09 lb)
- UU121626 – 2,60 Kg (5,73 lb)
- UU162032 – 4,30 Kg (9,48 lb)
Does the angle pin support the injection pressure made on the molding inserts?
No, it is the cone in the set that assures the cam is blocked and will not move.
What is the cam slide’s stroke?
The stroke is 3mm, 4mm and 5mm. (0.118”, 0.157” and 0.197”)
Are the inserts removable?
Yes they are. The set can be bought without the inserts, should the customer need to make their own special insert with different measurements to our standard.
Does the set incorporate a slide retainer?
Yes it does.
What material is the base made of?
1.4034 – 50 ± 2HRC. (AISI/SAE: 420)
What material is the guide made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
What material is the molding insert made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
What material is the insert that holds the molding insert made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
Can the unit work in Die-Casting?
No, as the slide retainer only withstands 150°C (302°F)
How much weight can the slide retainer of the UU sustain?
