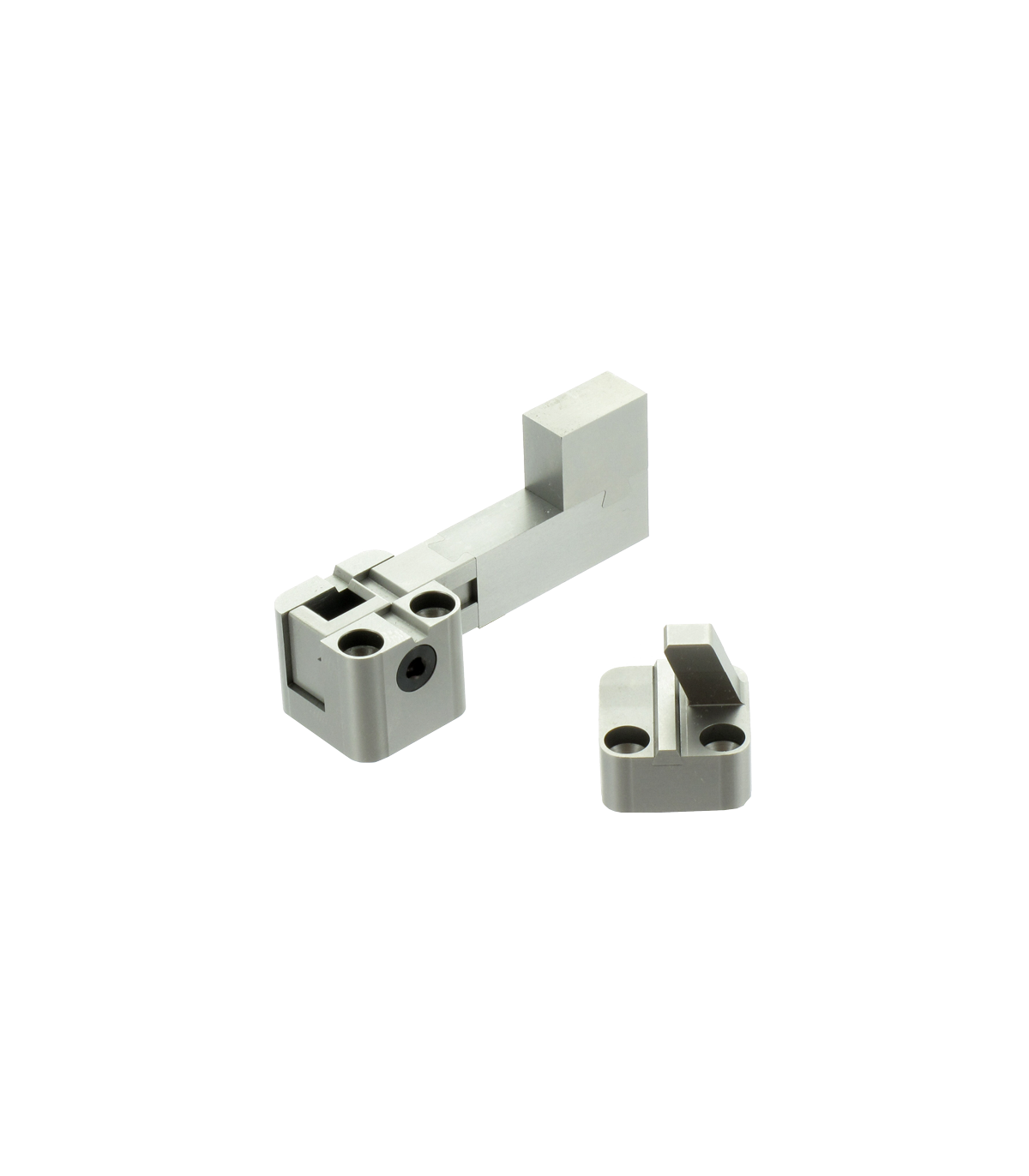

Moviment invers al de les correderes normals, fent-la ideal per a desenmotllar detalls interns.
Unitat compacta amb recorreguts de fins a 5mm.
La corredera consta de 2 parts, el què facilita el mecanitzat.
Tots els mecanitzats son a 90º d e la línea de partició.
Incorpora la guia inclinada i el retensor.
Read moreShow less
Unitat compacta amb recorreguts de fins a 5mm.
La corredera consta de 2 parts, el què facilita el mecanitzat.
Tots els mecanitzats son a 90º d e la línea de partició.
Incorpora la guia inclinada i el retensor.
- UU081220 – 1,40 Kg (3,09 lb)
- UU121626 – 2,60 Kg (5,73 lb)
- UU162032 – 4,30 Kg (9,48 lb)
Does the angle pin support the injection pressure made on the molding inserts?
No, it is the cone in the set that assures the cam is blocked and will not move.
What is the cam slide’s stroke?
The stroke is 3mm, 4mm and 5mm. (0.118”, 0.157” and 0.197”)
Are the inserts removable?
Yes they are. The set can be bought without the inserts, should the customer need to make their own special insert with different measurements to our standard.
Does the set incorporate a slide retainer?
Yes it does.
What material is the base made of?
1.4034 – 50 ± 2HRC. (AISI/SAE: 420)
What material is the guide made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
What material is the molding insert made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
What material is the insert that holds the molding insert made of?
1.2344 – 56 ± 2HRC. (AISI/SAE: H13)
Can the unit work in Die-Casting?
No, as the slide retainer only withstands 150°C (302°F)
How much weight can the slide retainer of the UU sustain?
