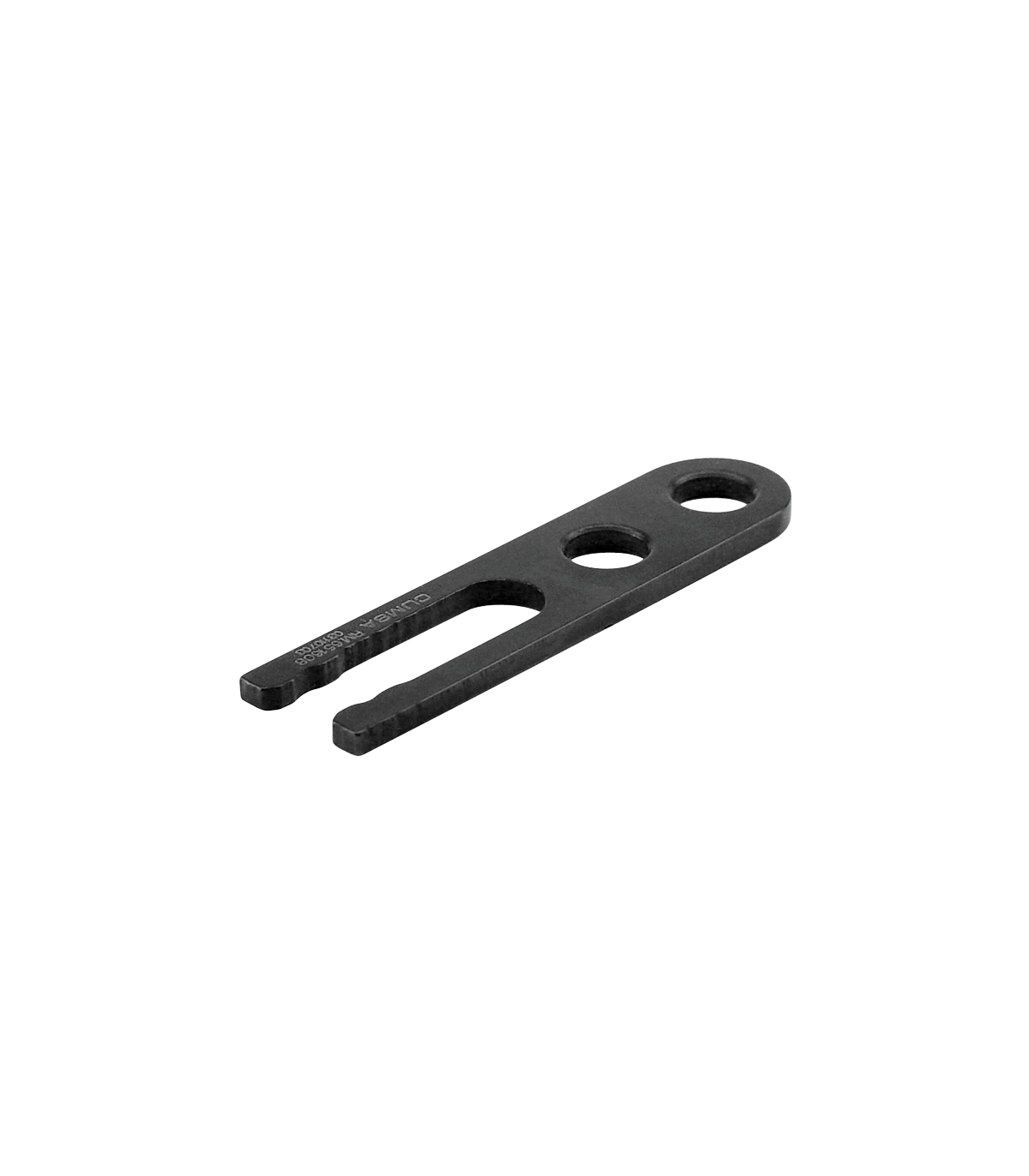

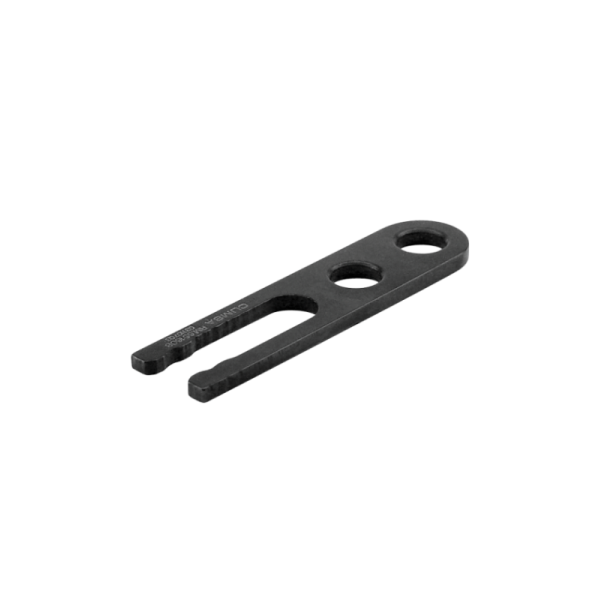

Pour des moules avec une retenue au plan de joint, soin pour l'empreinte ou pour la batterie.
Read moreShow less
What is the maximum working temperature of the Modular Retainers?
The maximum working temperature is 150°C (302°F).
What material is it made of?
It is made of Spring Steel.
How much retention load does each part have?
73.545N / 7.5 Kg (16.515lb)
Can I stack the parts to achieve a higher retention load?
Yes you can.
Is there a limit to how many parts I can stack?
No there isn’t.
Is there any recommendation to where I should apply the parts?
Yes, the closer to the corners of the plates the better, if the parts are located in the middle, the retention load is less.
Can I use these retainers to pull plates?
No, it isn’t recommended, the concept of the part is only to retain the plates, not to pull them.
Does the part have different hardness in different sections?
Yes, the part as a whole has 45 ± 2 HRC, but on the friction area, it is induction hardened up to 58 ±2 HRC to avoid wear.
