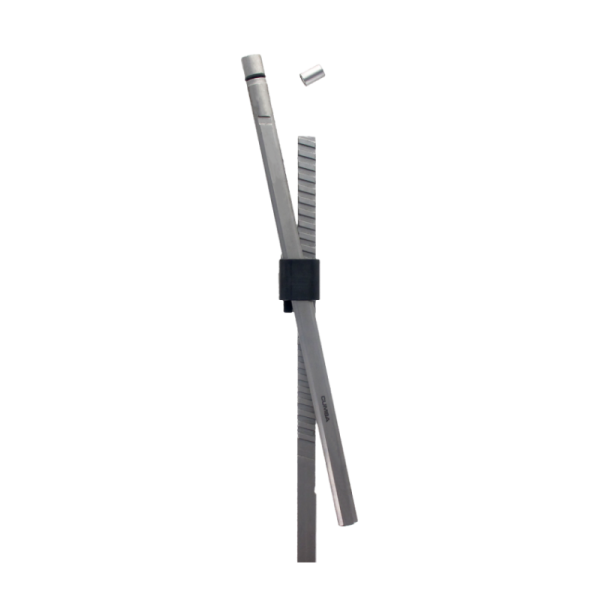

Double Rack system with internal housing to be able to incorporate a cooling circuit.
Reduces considerably the size of the insert.
Two different assembly options of the insert in regards to the cooling.
125mm. of stroke.
Read moreShow less
Reduces considerably the size of the insert.
Two different assembly options of the insert in regards to the cooling.
125mm. of stroke.
WARNING:
Please note that the 3D drawings only include one positioning tooth, and the vertical and inclined shaft's section dimensions shown do not correspond with the real machined shafts due to confidentiality issues.
Thank you!
- KR22 / KR28: 2600N / 265Kg (584lb)
- KR34: 4950N / 504Kg (1112lb)
- For the KR22: M8x0,75
- For the KR28: M9x0,75
- For the KR34: M9x0,75
- For the KR58: M18x2,5
- For the KR76: M24x3
Which is the FAST FIT resistance?
How do I correctly install the FC-KR?
See it here.
If we do not want to use the extension, which is the thread of the vertical shaft?
