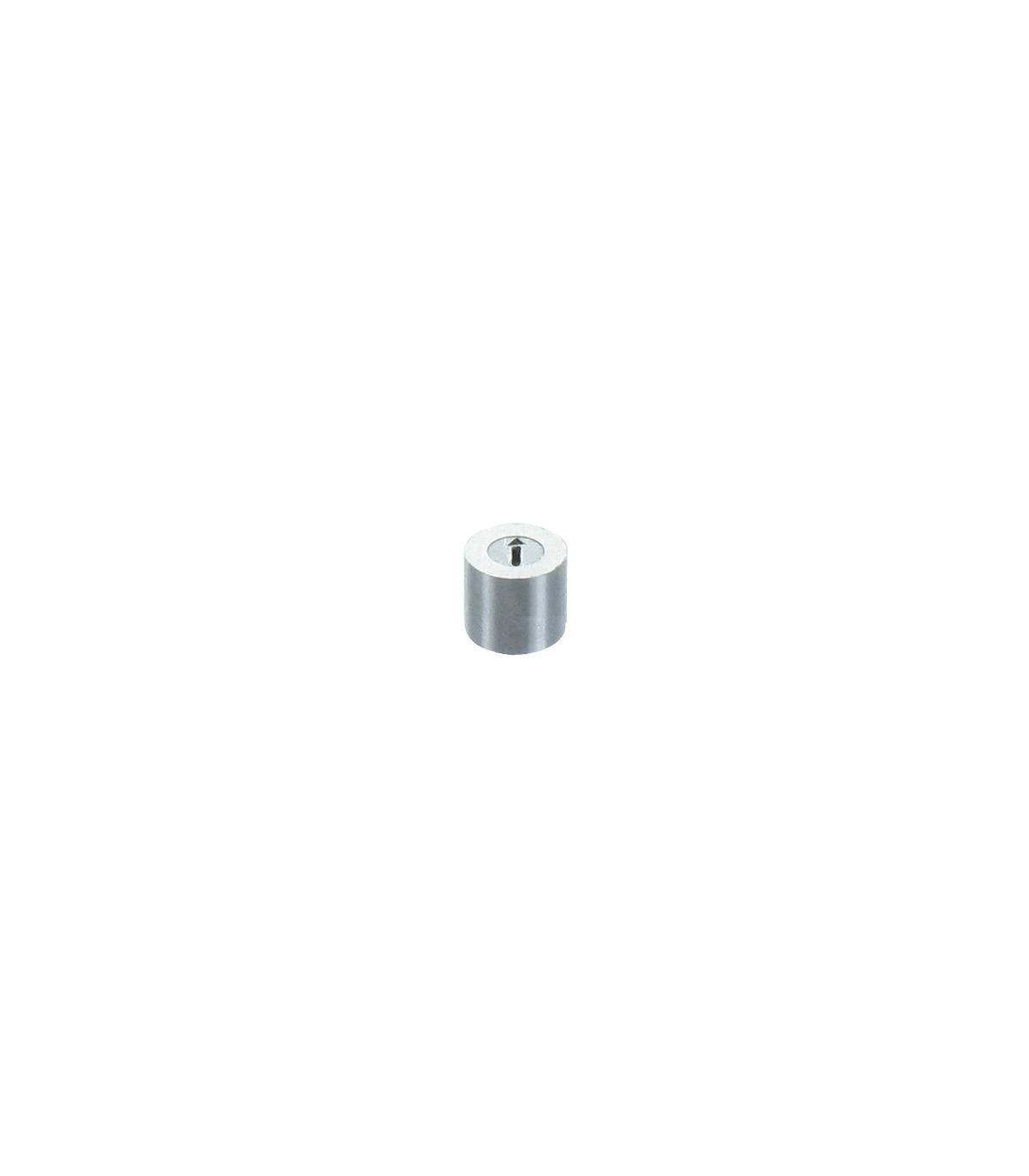

Le changement de mois et d'années se fait sans démonter le corps de l'outillage, il suffit de tourner sur la droite ou la gauche pour changer d'information.
Elément entièrement en acier inoxydable.
Read moreShow less
Elément entièrement en acier inoxydable.
Which is the recommended screwdriver width to manipulate the CUMSA date stamps / inserts?
| Ref | Screwdriver |
| FX04.... IX21.... | 1.2mm x 0.2mm. (0.047" x 0.0079") |
| FX05.... IX31.... | 1.5mm. x 0.25mm. (0.059" x 0.0098") |
| FX06.... IX32.... | 1.8mm. x 0.3mm. (0.071" x 0.0118") |
| FX08.... IX47.... | 2mm. x 0.4mm. (0.079" x 0.0157") |
| FX10.... IX57.... | 2.5mm. x 0.4mm. (0.098" x 0.0157") |
| FX12.... IX67.... | 3mm. x 0.5mm. (0.118" x 0.0197") |
Are special engravings possible?
Yes, you can request a special engravings on all our date stamps.
Can I remove the date stamp from the tool?
Yes, on our catalogue page we indicate the size of the hole (E dimension) to be made before installing, the date stamp can then be removed using the appropiate ejector.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
How deep is the engraving on the Xtra Date Stamp - FX?
| Ref | Numbers | Line |
| FX04.... IX21.... | 0,15mm. (0.006") | 0,35mm. (0.014") |
| FX05.... IX31.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX06.... IX32.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX08.... IX47.... | 0,15mm. (0.006") | 0,40mm. (0.016") |
| FX10.... IX57.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
| FX12.... IX67.... | 0,15mm. (0.006") | 0,50mm. (0.020") |
