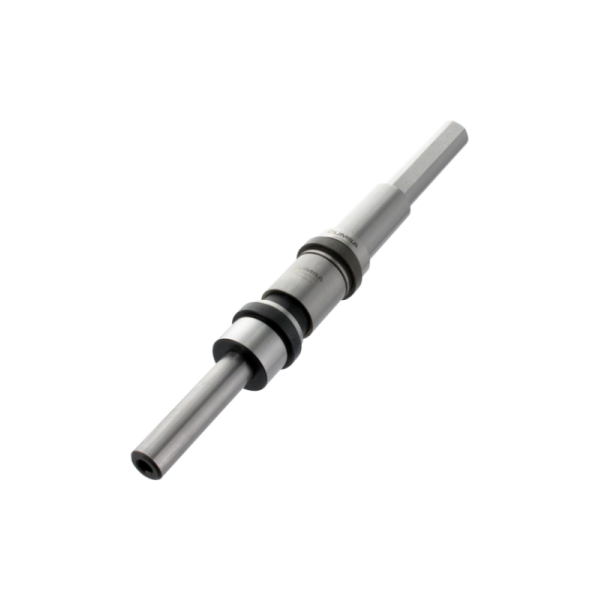

Compact internal ejection system designed to work in two different ways in small and medium sized molds:
- As a pre-opening movement of the mold.
- As a double ejection system, controlling 2 sets of ejector plates when the machine actuates the upper set of plates.
The system allows customizable strokes, with a first stroke from 6 to 42mm and a second stroke from 6 to 48mm.
Designed for installation in the corners of the plates, as it frees up the central area for other ejection components. Available in two sizes, it is a maintenance-free solution with simple internal installation.
Max. holding force: 1.200 kg. It's recommended to install them in multiples of 2, so that the mold is even.
What is the maximum ejection speed of the tool?
The maximum recommended speed is of 30 meters (98.24ft) per minute.
How many parts should I apply in a tool?
Minimum 2 pieces completely balanced, they should be applied in a diagonal.
What is the minimum first stroke?
6mm (0.236").
