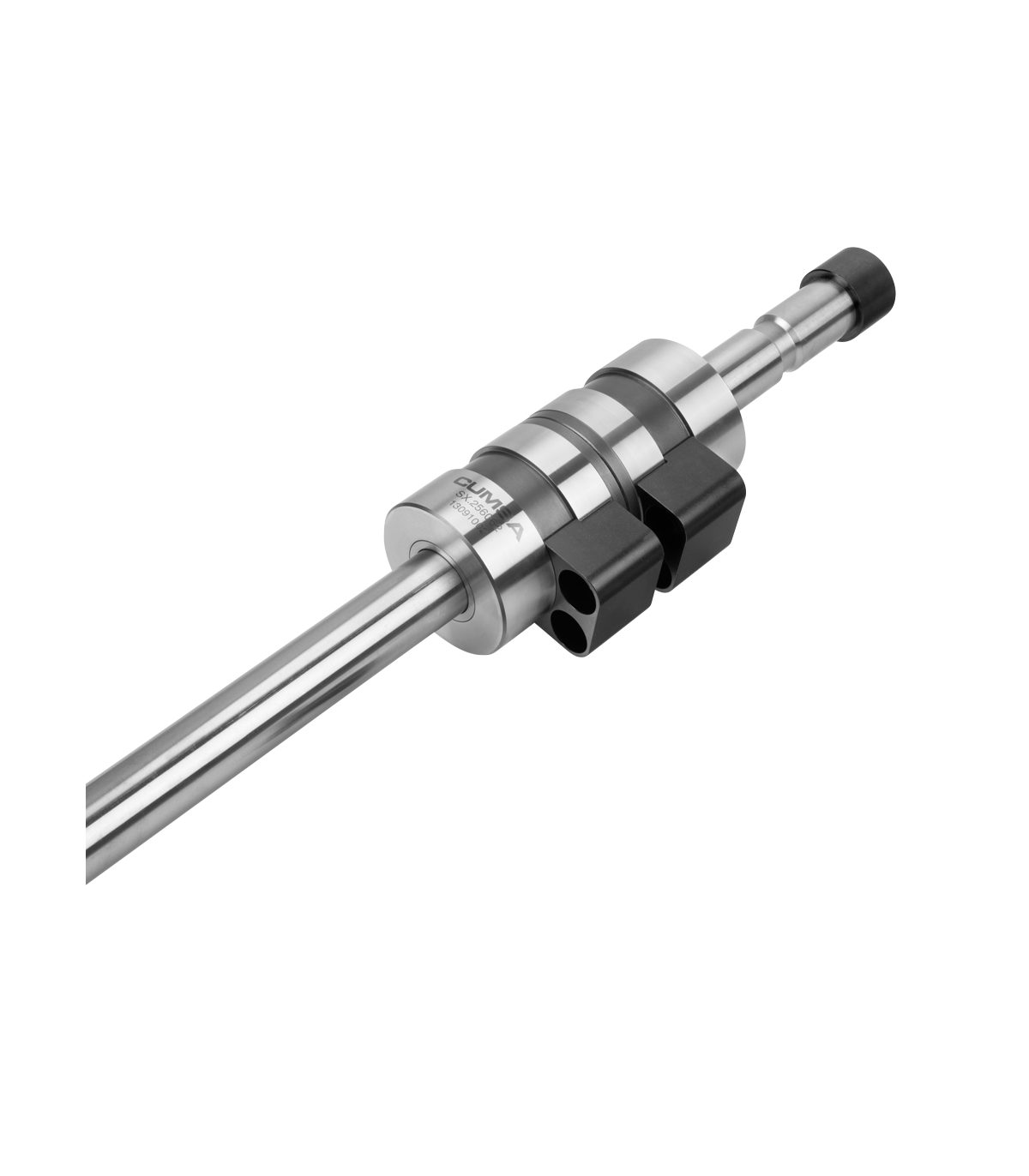

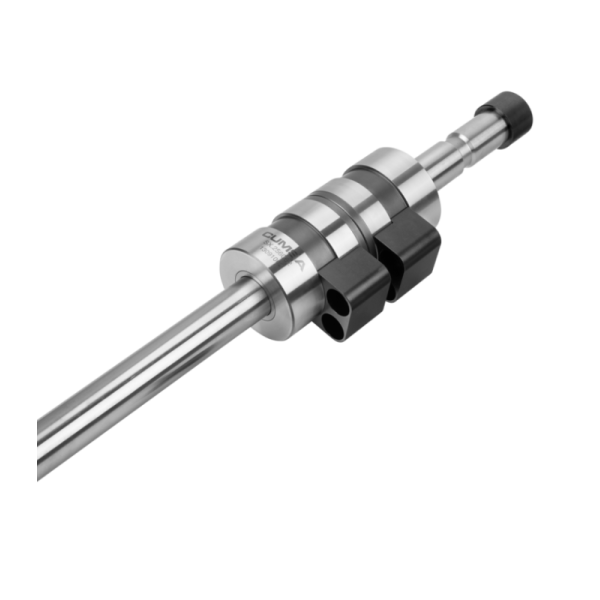

Compact internal ejection system designed to work in two different ways:
• As a pre-opening plate movement of the mold.
• As a double ejection system that controls 2 sets of ejector plates when the machine actuates the upper set of ejector plates.
Suitable for medium and large-sized molds. Adjustable first stroke from 12-357mm, and a free second stroke; therefore, the system keeps the lower set locked until the upper plate returns to its original position.
A 25mm rod allows its use in small, medium and large molds.
Reduced mold space as the assembly is made inside the ejector frame, allowing installation in existing molds. Simple and easy adjustment of units by simply cutting the center rod.
Robust compact bushings and cam fingers for reliable performance.
Maximum holding force of 2.500 kg. It’s recommended to install them in multiples of 2, so that the mold is even.
