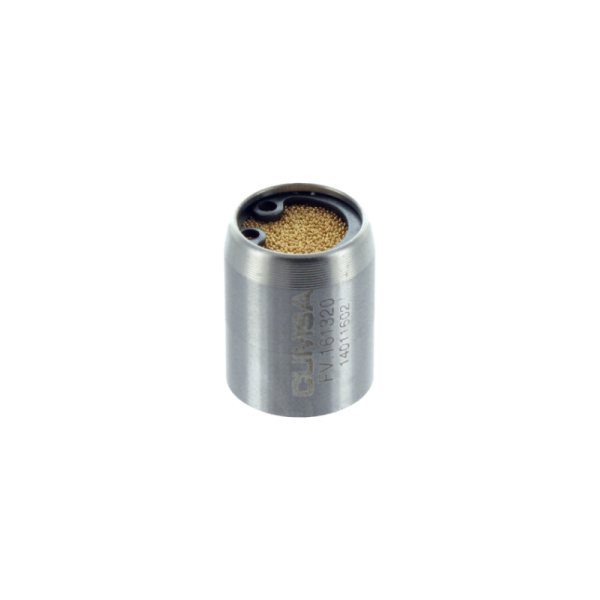

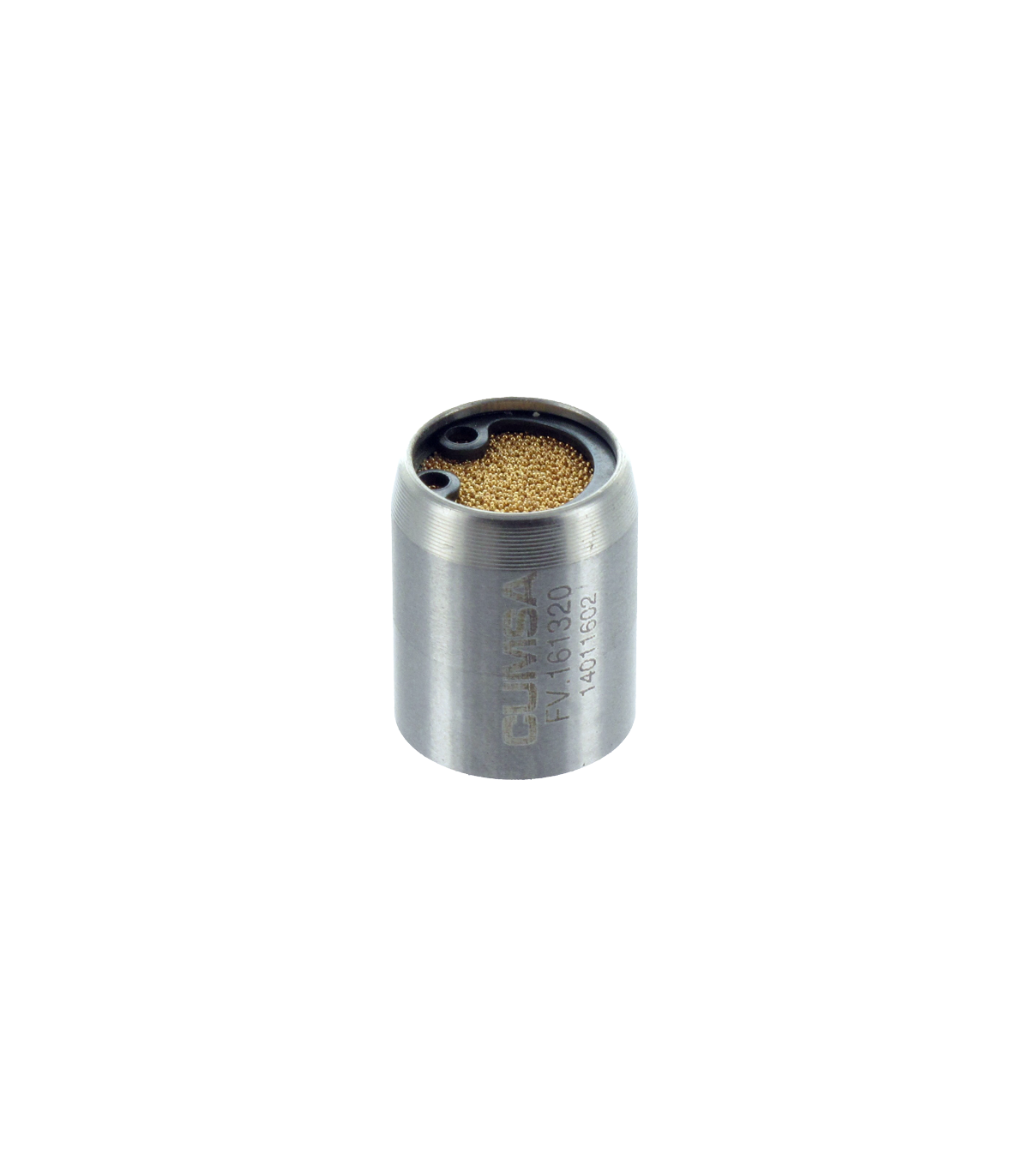

The FV valve is the only one on the market with a built-in filter that prevents blockages caused by particles or metal chips. This helps avoid breakages and costly production costs.
- It is the ideal solution for packaging mold applications due to its compact and reliable design, which makes it perfect for high rotation and demanding molds.
- Allows pneumatic ejection of the plastic part.
- Simple and uncomplicated installation in the mold thanks to its double m6/g6 tolerance and H7 machining.
- Withstands temperatures up to 150ºC / 302ºF and injection pressure up to 1.200Kg/cm².
- Works effectively with a pressure range from 3 to 10BAR.
- Available in 16 and 20mm diameters.
What is the maximum temperature that an Air Valve can withstand?
We recommend working under 150°C (302°F). Above that temperature, steel starts dilatation, so the resort introduced on the Air Valve would lose efficiency. If so, the plastic material could go in and the Air Valve would be damaged.
What is the maximum air pressure that can be used?
10Bars (145 psi).
Can I remove the valve from the tool?
Yes, on our catalogo page we indicate the size of the hole (E dimension) to be made before installing, the valve can then be removed using the appropiate ejector.
Is there any limitation on the position of the valves in the mold?
The valve should not be installed below the injection point. In that position the high temperatures and pressure could negatively influence the valve components and decrease their lifetime.
