English 过滤网空气顶出

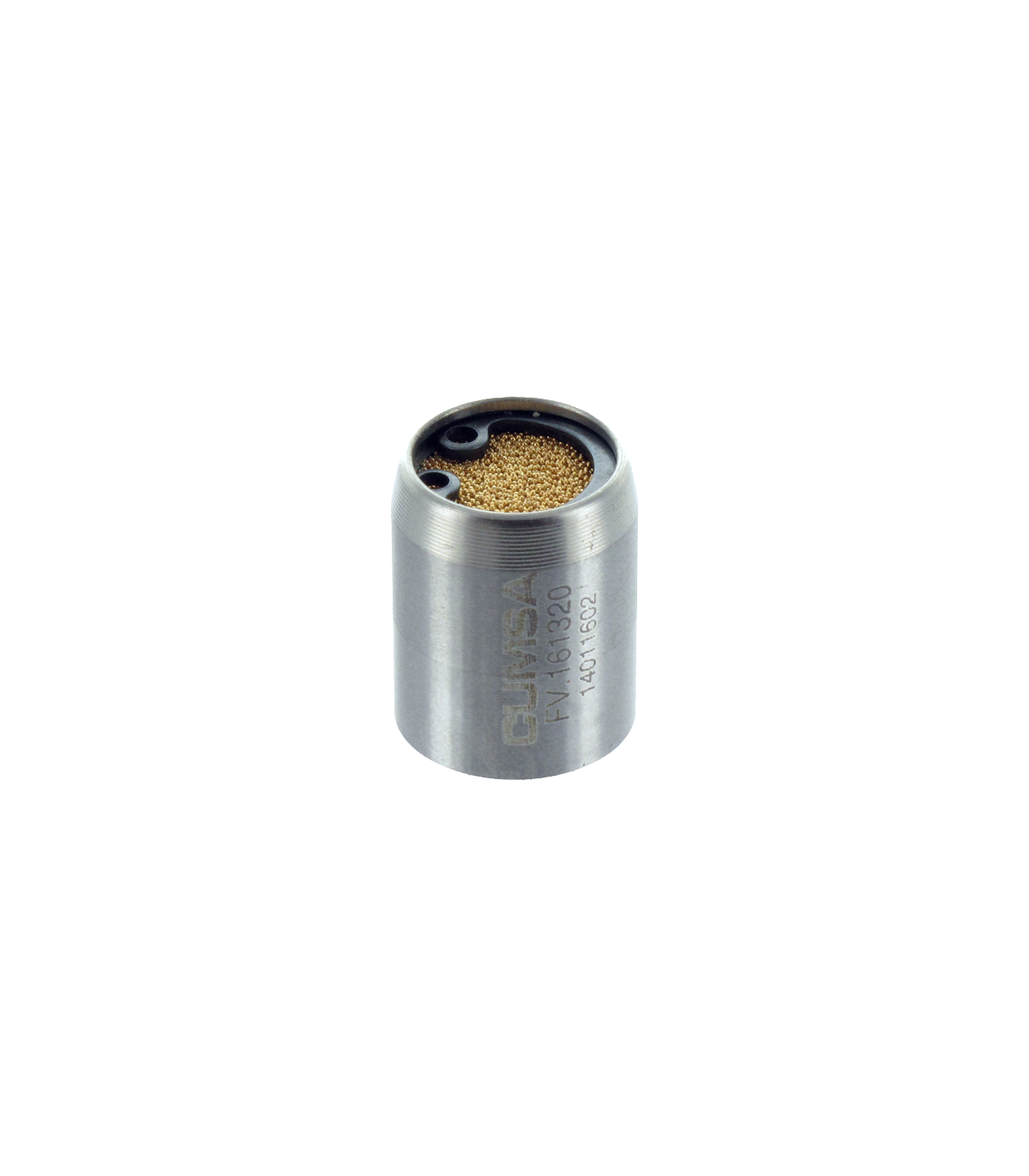

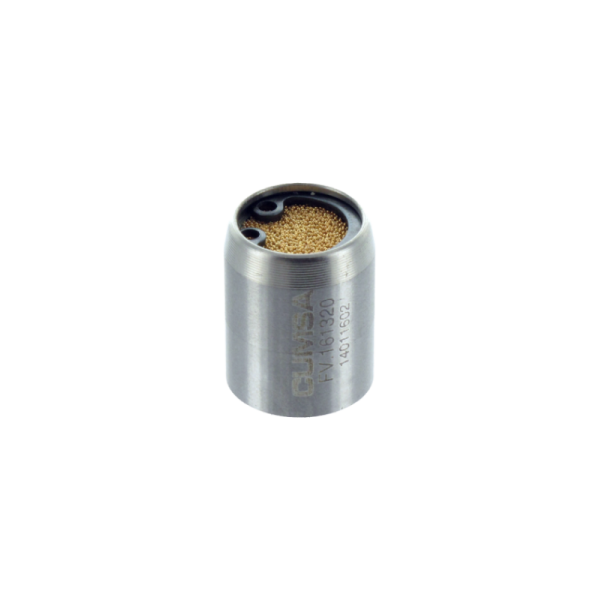

Ø16过滤网空气顶出
参考资料:
FV161320
有效应用于安装空间小或对表面精度要求高的顶出件，附有过滤网，能有效隔绝尘埃，确保空气顶出动作更顺畅。有多种尺寸供选择
Read moreShow less
空气顶出能承受的最大工作温度？
我们建议在150°C / 302°F.下工作，超过该温度时，钢开始扩张，因此对空气顶出引入的方法将失去效率。如果是这样，塑料材料会变形和空气顶出会被损坏。
可以使用的最大空气压强是多大？
10Bars (145 psi).
Can I remove the valve from the tool?
Yes, on our catalogo page we indicate the size of the hole (E dimension) to be made before installing, the valve can then be removed using the appropiate ejector.
Is there any limitation on the position of the valves in the mold?
The valve should not be installed below the injection point. In that position the high temperatures and pressure could negatively influence the valve components and decrease their lifetime.
