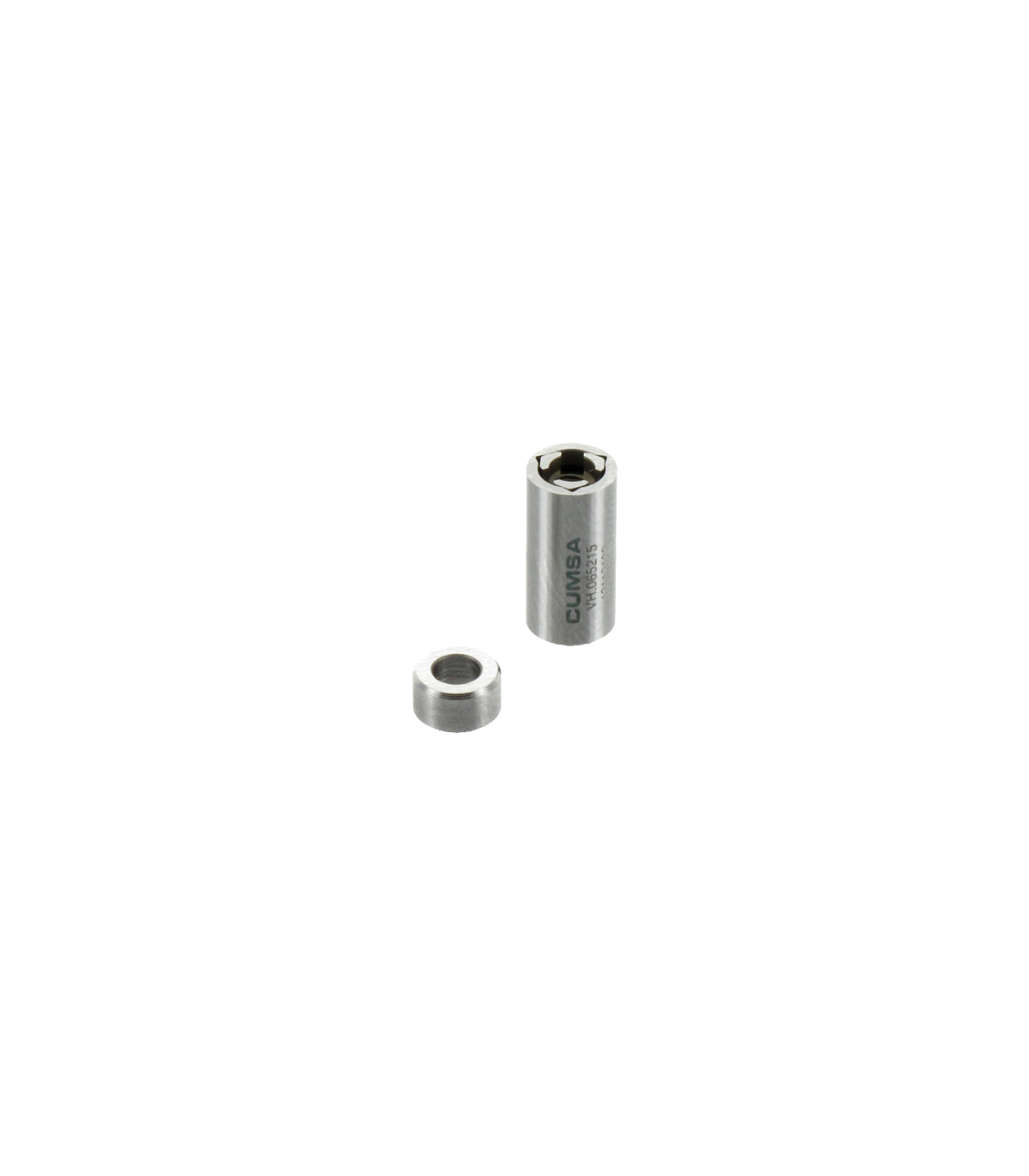

It allows for the pneumatic ejection of plastic parts, being the ideal solution for thin wall injection molds, available worldwide.
- Air valve developed for high injection pressure and high-speed cycles, up to 500BAR with a max. temperature of 150ºC (302ºF).
- Comes with a spacer disc for grinding to the exact pocket dimension and a special shaped nut to avoid insert turning.
- Functions with air pressure between 2 and 10BAR.
- Available in 6, 8 and 12mm diameter.
- Triple air entrance to ensure a balanced opening.
- Its design ensures that it can be installed on angled or shaped surfaces.
- Incorporates an internal stopper to sustain injection loads, preventing system blockages.
- Added adjustable ring to ease installation and possible removal, if necessary, without damaging the valve.
Can I remove the valve from the tool?
Yes, on our catalogo page we indicate the size of the hole (E dimension) to be made before installing, the valve can then be removed using the appropiate ejector.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
On the smaller diametres (6) extra care needs to be taken to remove the part slowly, knocking softly to avoid damage to the internal mechanisms.
Is there any limitation on the position of the valves in the mold?
The valve should not be installed below the injection point. In that position the high temperatures and pressure could negatively influence the valve components and decrease their lifetime.
