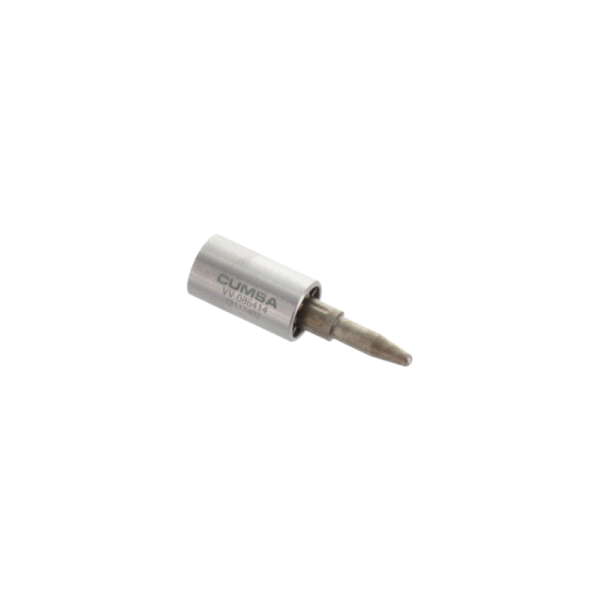

Air valve that draws a bigger volume of air from the cavity rather than only using the ejector pin clearances.
Allows a back pressure in the cavity of up to -920mbar.
Enables a vacuum up to 60 Normal L/min.
Triggered by a pneumatic valve.
Read moreShow less
Allows a back pressure in the cavity of up to -920mbar.
Enables a vacuum up to 60 Normal L/min.
Triggered by a pneumatic valve.
Where can I find a Vacuumjet System user manual?
Download here the NEW User Manual for the Vacuumjet System!
What is the maximum working temperature?
150°C (302°F).
Is it possible to shorten the stroke/opening of the VV-SET, which is of 2.50mm (0.098”)?
Yes, by cutting the tube shorter, this will decrease the opening.
Is it possible to machine the top of the valve in order to shape it to the core geometry?
No, as the inner piston isn’t keyed to the body.
