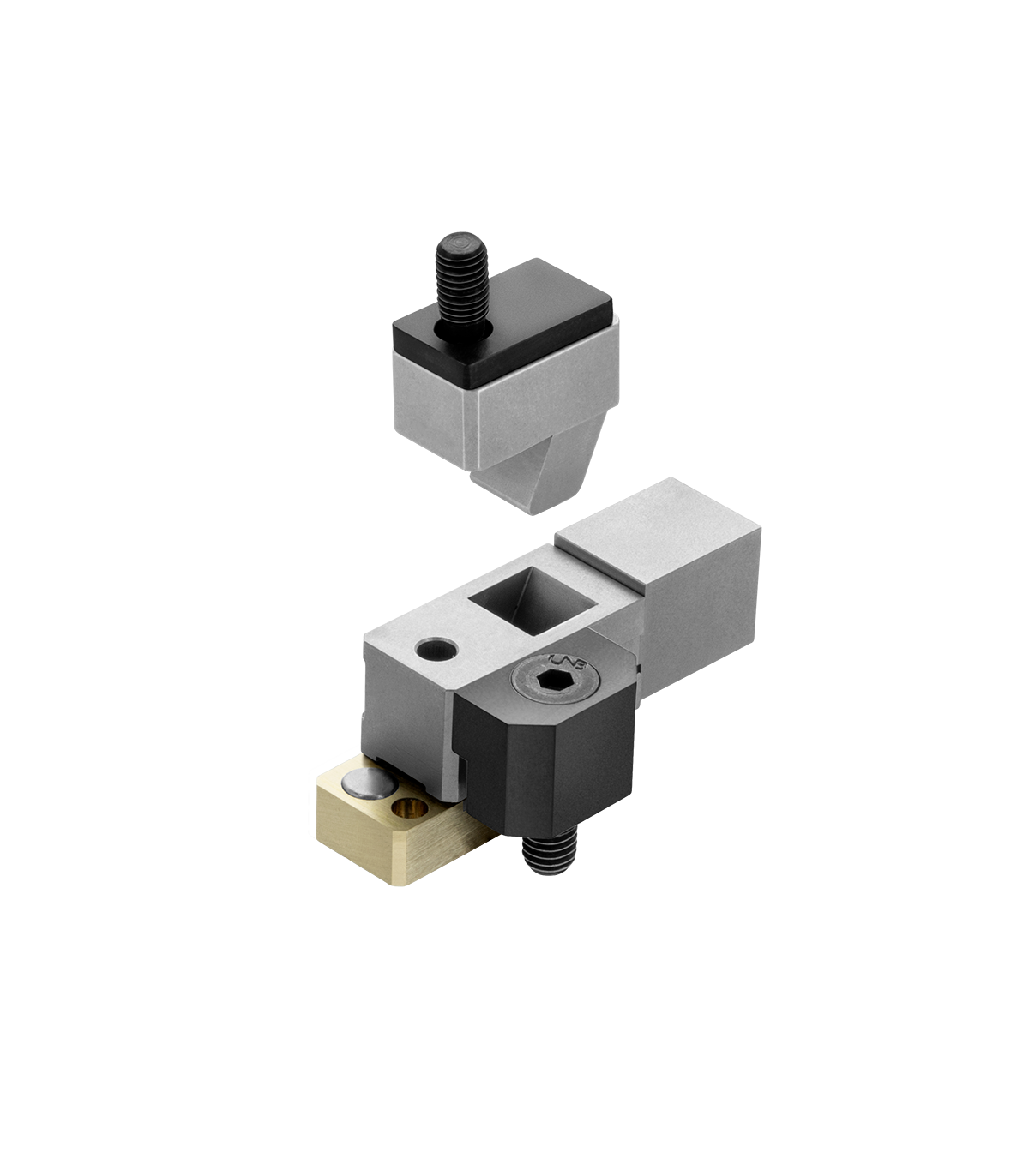

Mini Slide 11.6x12.2 (Stroke 3mm.)

Simplify your mold design. Reduce costs. Improve precision.

With CUMSA’s Mini Slide, precision alignment is easier, faster, and more cost-effective than ever.

Miniaturized version of the Compact Slide.

GREAT ADVANTAGES

Self-Centering Precision
The slide comes with a floating, self-centering insert during mold closing for consistent, accurate results. Its secret: the horizontal and vertical movement of up to ±0.5 mm.

Minimal Machining Required
Only the insert piece requires precision machining (a 10 º cone to be mechanized by the customer). No tight housings are needed on the rest of the slide.

Fast & Simple Installation
Just three screws required: one on the ejection side and two on the injection side.

Reduced Wear & Maintenance
Its magnetic plate minimizes friction, and the retainer securely holds the slide in place during the ejection process.

Cost reduction
No angle pins, lateral sliding guides or external retainers needed, cutting costs by up to 50% compared to conventional slides.

Built for Efficiency & Reliability
Fewer components, faster setup, and simplified maintenance improve overall mold performance and longevity.
