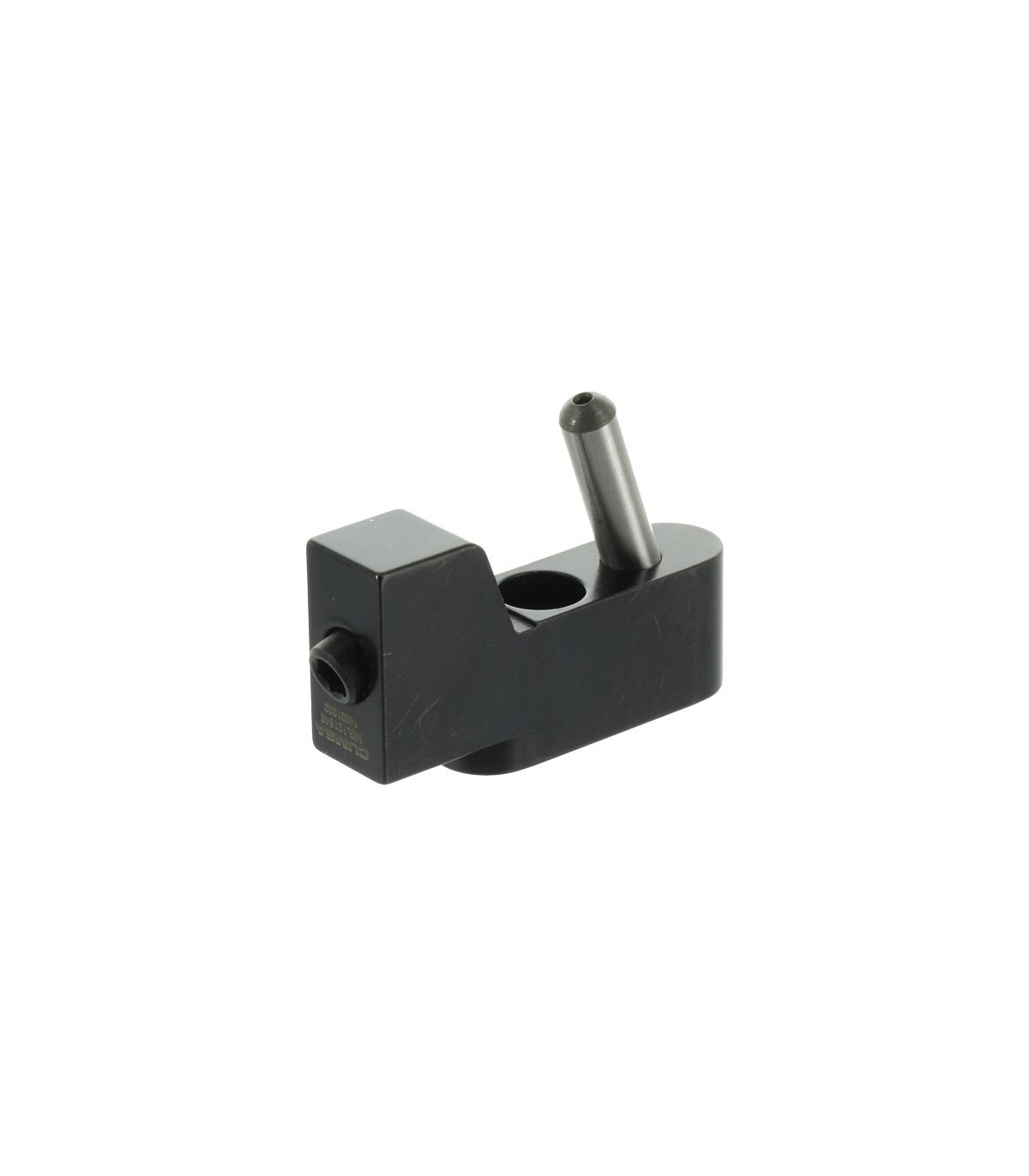

Includes the angle pin and a pressure regulator with an integrated locking system, which allows, in few seconds, mold closed adjusting with only an hex key.
Read moreShow less

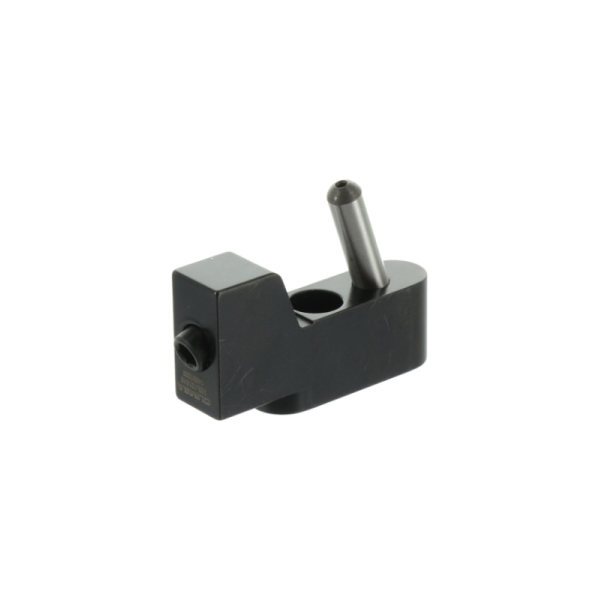

- MG121648: 50.000N / 5.099 Kg (11.241 lb).
- MG201648: 90.000N / 9.187 Kg (20.253 lb).
What load can the adjustable heel support?
How much can I adjust the heel?
Maximum 0.6mm (0.024”).
What is the cam slide’s stroke?
The stroke is 4mm (0.157”).
What material is it made of?
1.2312 – 32HRC ± 2 HRC. (AISI/SAE: P20+S).
Is the entire unit hardened?
No, only the adjusting nut is hardened.
