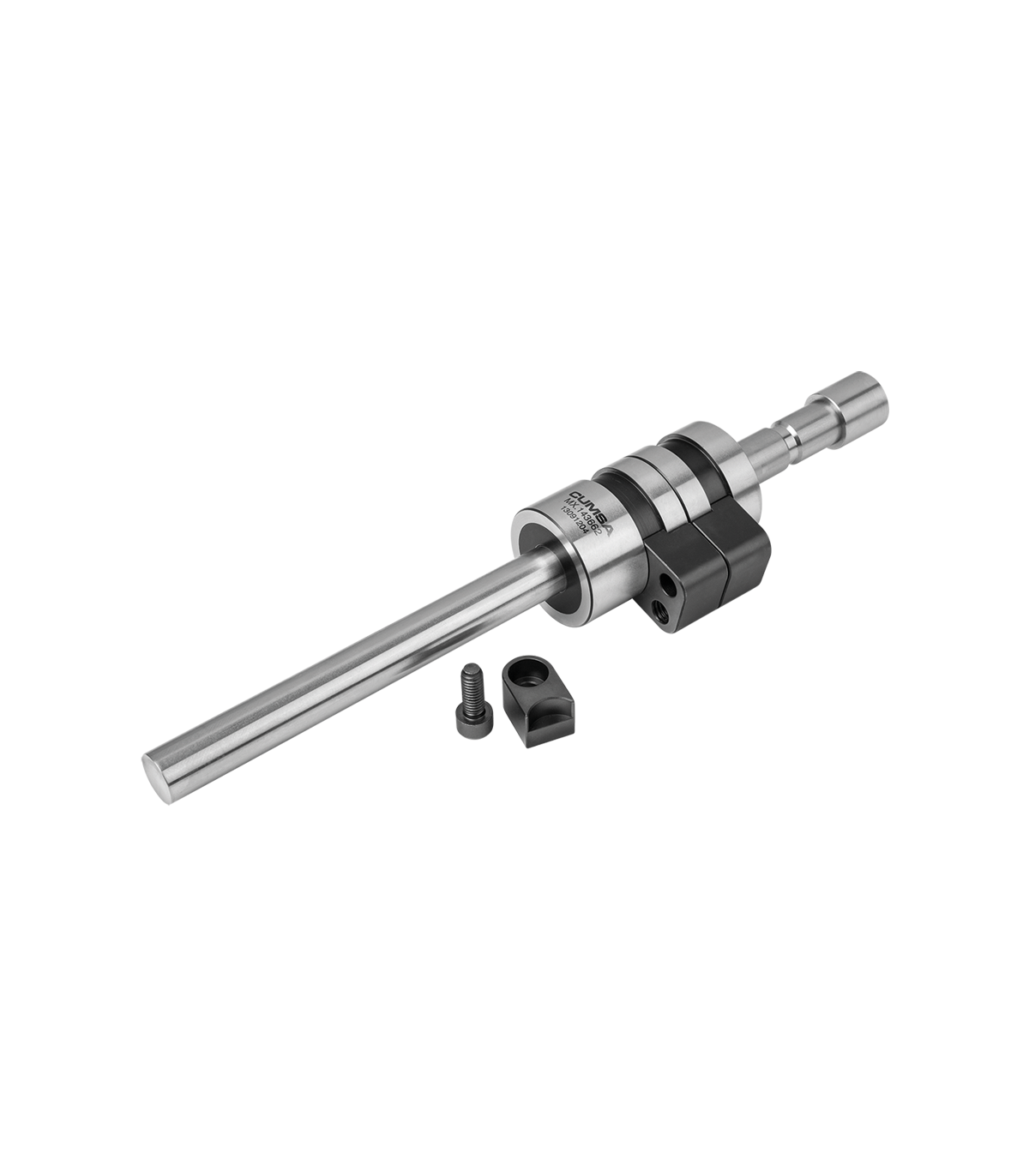

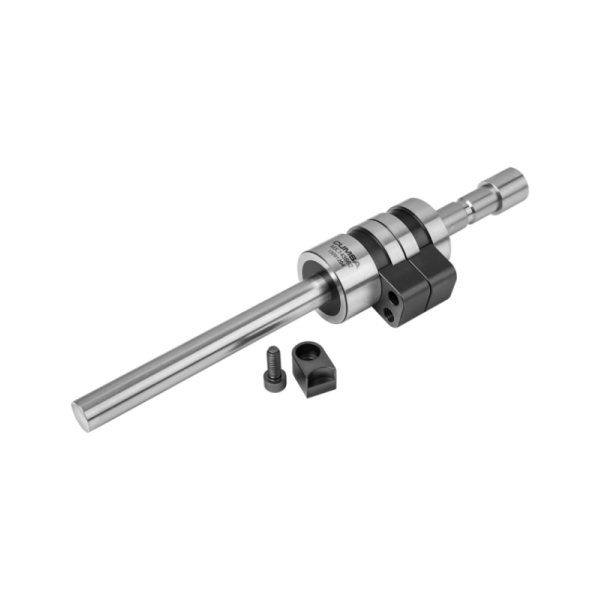

Controls two stage opening of the tool.
Internal mechanism.
Reduced space required for installation.
Developed for small/medium tools.
Can also be used to control two sets of ejection plates for two stage ejection.
Read moreShow less
Internal mechanism.
Reduced space required for installation.
Developed for small/medium tools.
Can also be used to control two sets of ejection plates for two stage ejection.
What is the minimum stroke?
6mm (0.236").
What load can the MX sustain?
Fixing systems (screws) and stoppers: 1.000Kg (2.204 lb).
Bushings and cam fingers regarding the internal rod: 1.500Kg (3.306 lb).
Bushings and cam fingers regarding the internal rod: 1.500Kg (3.306 lb).
What is the maximum ejection speed of the tool?
The maximum recommended speed is 30 meters (98,24ft) per minute.
