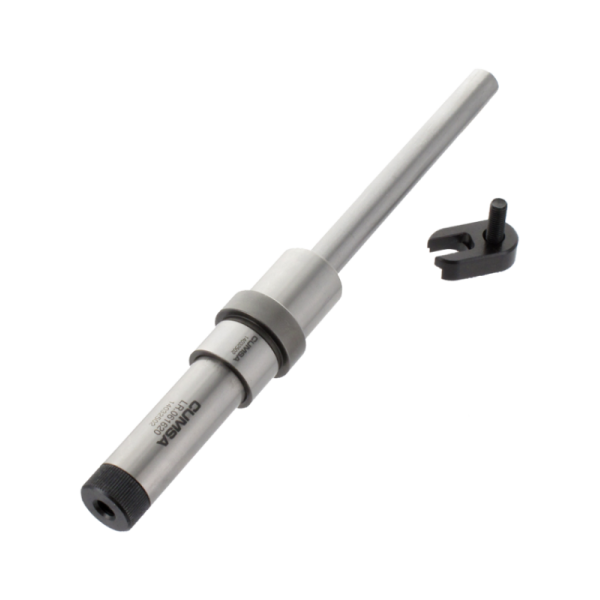

Limits the stroke of a threaded lifter with respect to the ejector stroke.
Enables two stage ejection with only one ejector plate.
All movements are 90° to the parting line.
Minimum space required for installation.
Read moreShow less
Enables two stage ejection with only one ejector plate.
All movements are 90° to the parting line.
Minimum space required for installation.
What is the maximum ejection speed of the tool?
The maximum recommended speed is of 30 meters (98.24ft) per minute.
What load can the LR support?
1961.20N / 200Kg (440.40lb) per unit.
The second movement can be free?
Yes, if the plates are correctly aligned, the second movement can be free.
Can be used also as a double ejection system?
Yes, please refer to this instructions.
