Block Base

Q: How deep is the engraving?

Ref Numbers Line PM...... 0.15-0.20mm. (0.006-0.008') 0.50-0.60mm. (0.019-0.024') Ref Triangle BM...... 0.20-0.25mm. (0.08-0.010')

Q: What kind of thread is on the BM and PM?

Ref Arrow PM...... BM...... M3.5x0.6mm.

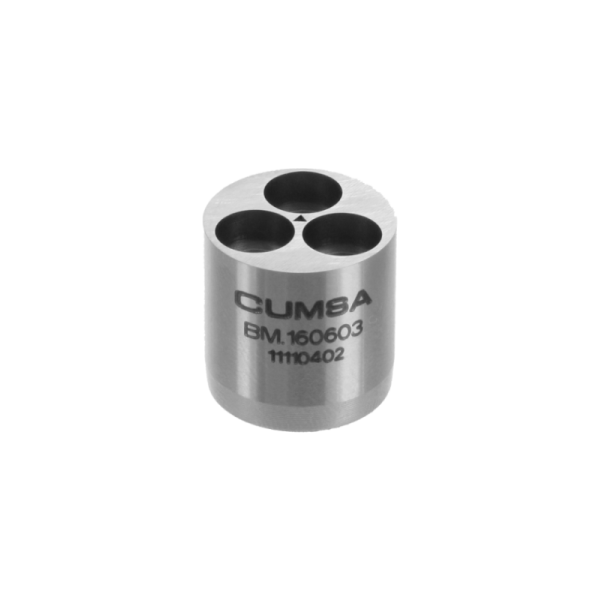

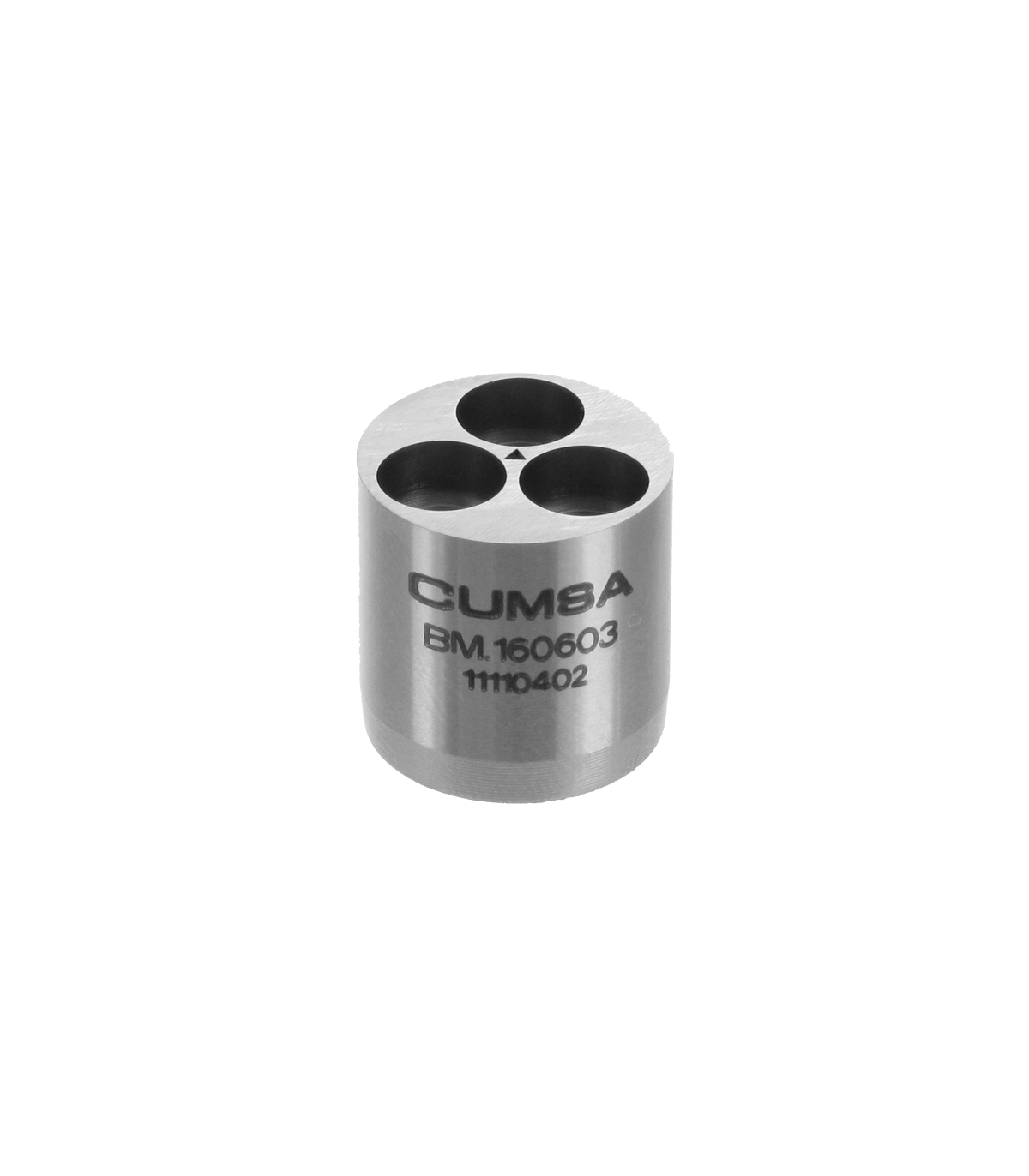

Block Base Ø16x3 Inserts

Reference:

BM160603

Diameter

Option

3 Inserts

Description

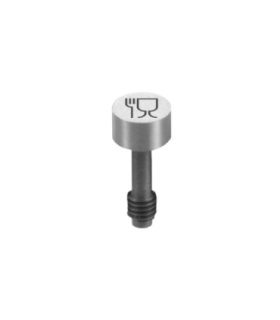

The most versatile engraving unit on the market includes a mechanism to install 3 or 4 block inserts (PM), allowing the configuration of any sort of standardized information.

Read moreShow less

Product Details

Reference BM160603

Questions(FAQs)

How deep is the engraving?

Ref	Numbers	Line
PM......	0.15-0.20mm. (0.006-0.008")	0.50-0.60mm. (0.019-0.024")

Ref	Triangle
BM......	0.20-0.25mm. (0.08-0.010")

What kind of thread is on the BM and PM?

Ref	Arrow
PM...... BM......	M3.5x0.6mm.

Can I remove the date stamp from the tool?

Yes, on our catalogo page we indicate the size of the hole (E dimension) to be made before installing, the date stamp can then be removed using the appropiate ejector.
