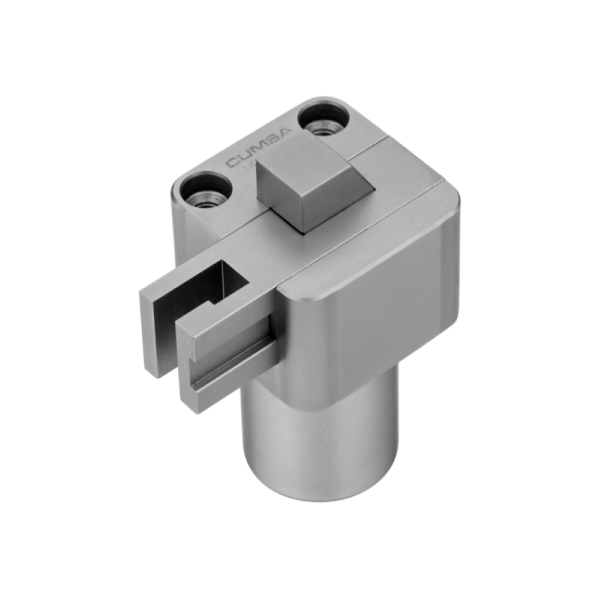

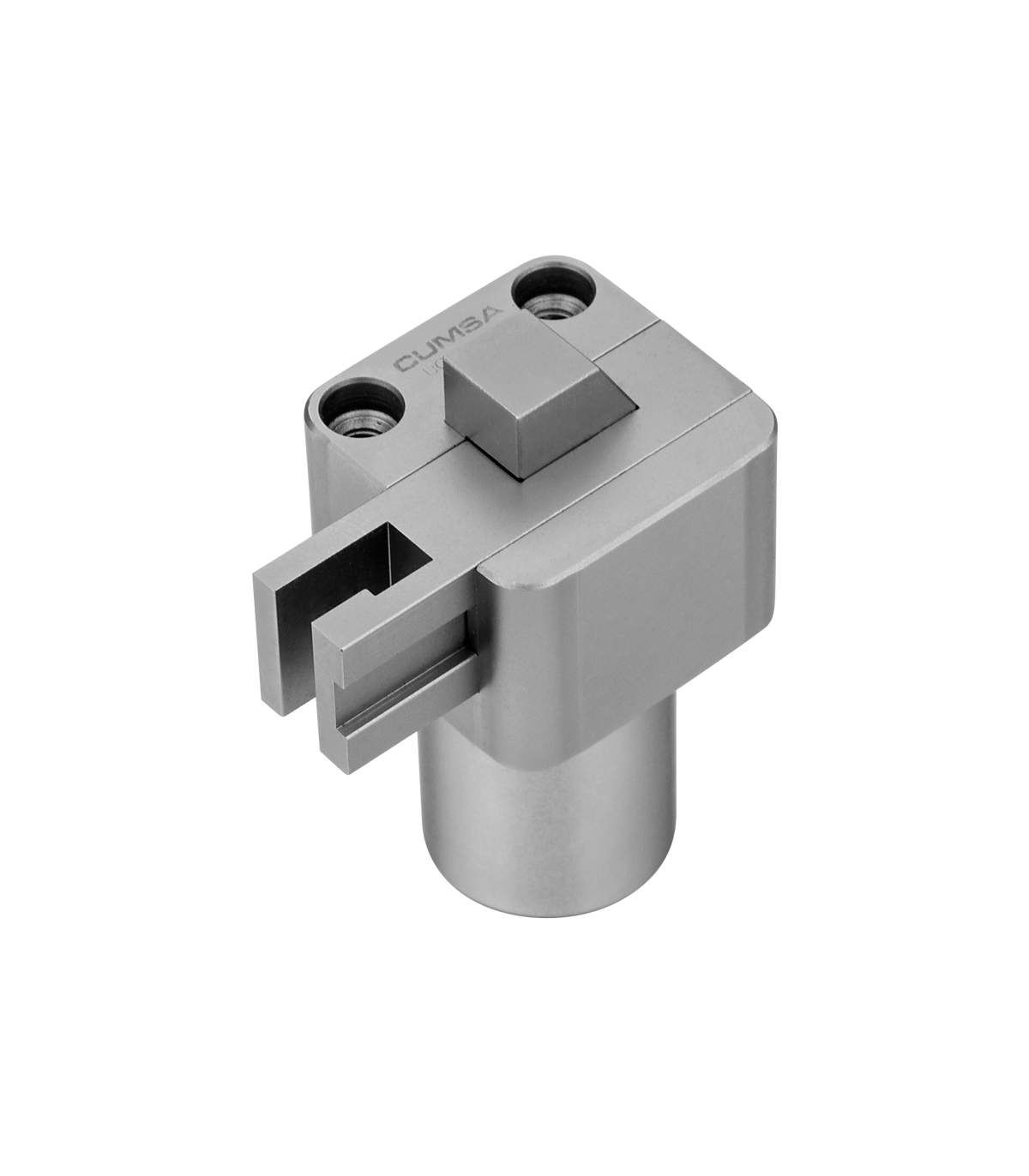

Core Cam

UC325445

Core Cam

Stroke

  • 4,5
Description

Compact mechanism designed to create lateral holes with automatic retention for the core insert.


Actuated by standard springs with a 40kg retraction force and a 4.5mm stroke, the unit should be installed in the mold’s parting line, but it can be installed externally or internally.

Its one-plate installation reduces required space and enables simple vertical machining, with no adjustment needed between core and cavity plates.

The mechanism is easily replaceable and maintainable from the parting line. As an independent device mounted on the core plate, only the pin requires adjustment.

Standard market springs ensure easy maintenance and spare part availability.

Read moreShow less
Product Details
UC325445
Questions(FAQs)
    How much stroke does it have?
    4.5mm (0.177”).

    How is the unit fixed?
    By 2 special screws.

    What is the lifetime of the spring?
    500.000 cycles.

    Can the spring be removed?
    Yes it can, by dissembling the part from the tool.

    Is it a standard spring?
    Yes it is (ISO 10243 V20-25).

    What is the maximum working temperature for the unit?
    The maximum working temperature is 150°C (302°F)

    Is it possible to key the pins?
    Yes it is. The shape of the fixing system already keys the pins.

Video

Product demostration
