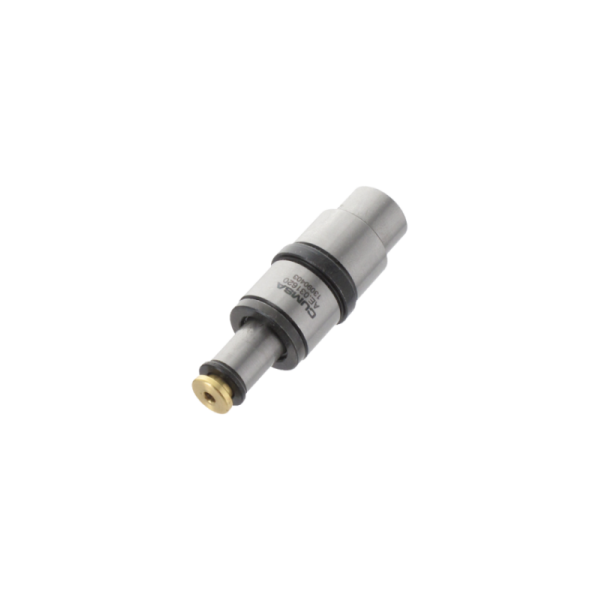

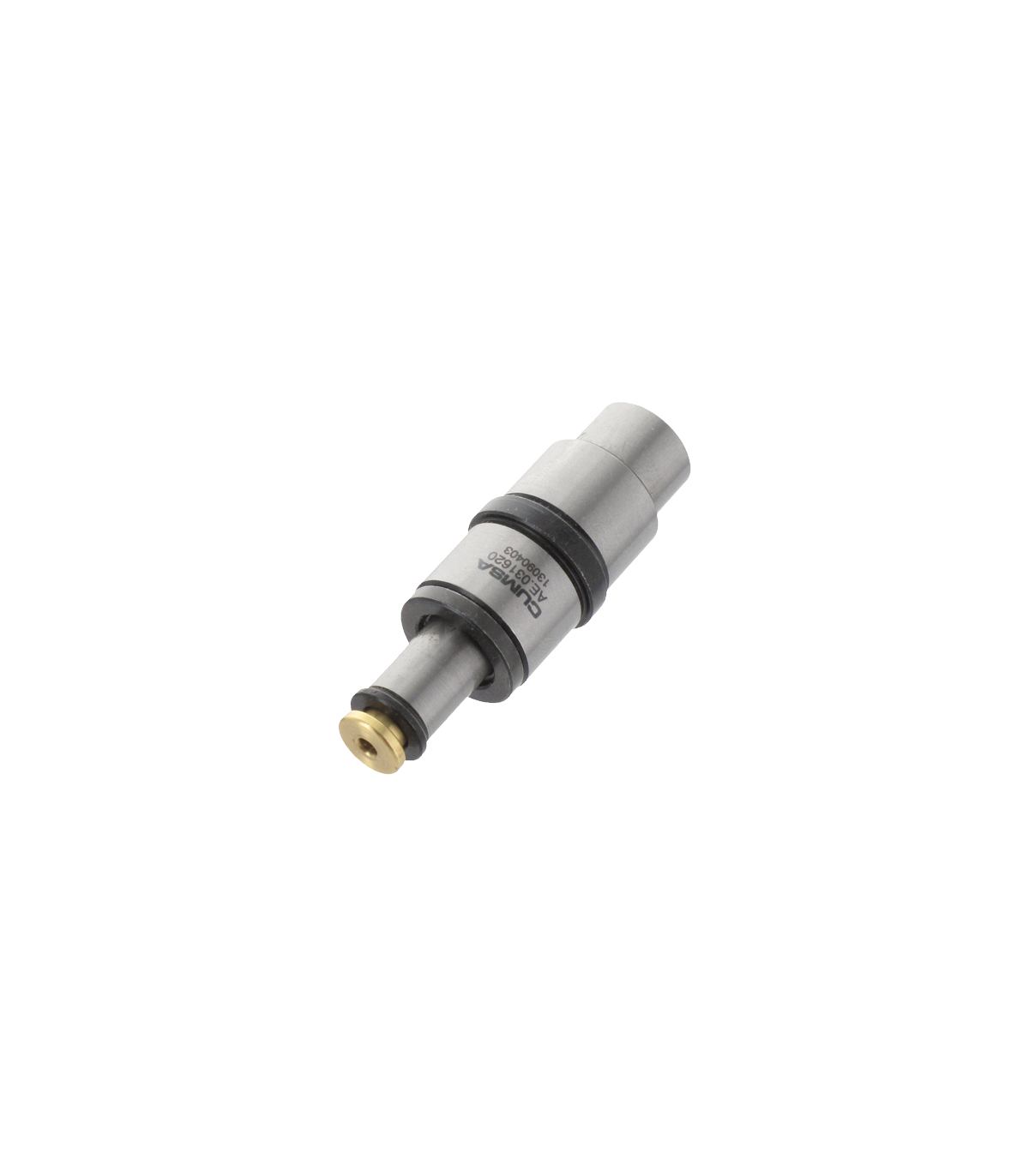

Allows to increase the stroke of selected ejectors within the tool.
It is easy to install due to its cylindrical shape and possible to automate conventional tools.
Read moreShow less
It is easy to install due to its cylindrical shape and possible to automate conventional tools.
- 8mm (0.315”) of extra stroke, with the AE031620 and AE041620.
- 15mm (0.591”) of extra stroke, with the AE052430, AE062430 and AE082430.
- 20mm (0.787”) of extra stroke, with the AE103036 and AE123036.
How much extra stroke does it provide?
When the internal bushing of this piece gets in contact with the plate, the mechanism starts working. From that point, the ejector of the AE goes at double stroke. The maximum extra is:
Can the AE be installed directly below the injection point?
Its is not recommended as the injection pressure could damage the AE internal mechanism.
