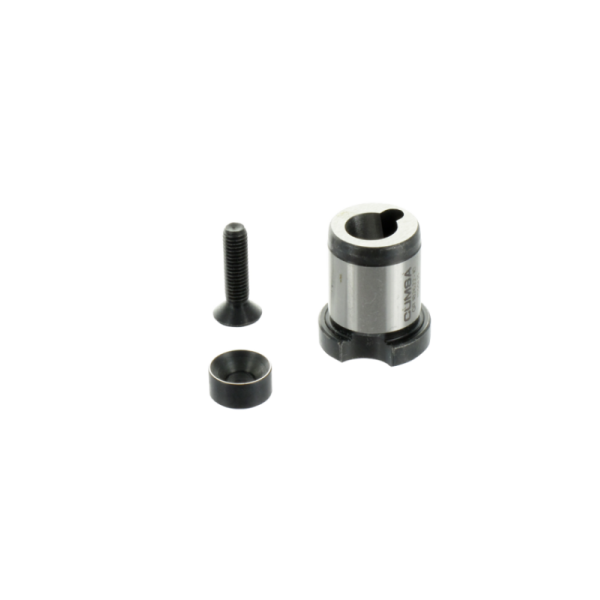

Guia Regulable Ø18-10º

GR182622-10

Guia Regulable Ø18-10º

Diàmetre

  • 18
  • 22
  • 28
  • 34
  • 40
  • 46

Angle

  • 10º
  • 15º
Descripció
Casquet porta guies, que elimina l'operació de forats inclinats al motlle, fet que permet realitzar tot el mecanitzat en una sola operació.
Es fabrica en angles de 10° i 15°, i en diferents diàmetres.
Read moreShow less
Detalls del producte
GR182622-10
Questions(FAQs)
    What angles are available?
    10º and 15º.

    What stroke is achievable with the Angle Pin Housing?
    It depends on the angle and the length of the pin that is used:
    RefAngle PinStroke
    GR.182622-10GI.0100757.5mm. (0.295")
    GI.01009010.2mm. (0.402")
    GI.01010512.8mm. (0.504")
    GR.182622-15GI.01007511.2mm. (0.441")
    GI.01009015.1mm. (0.594")
    GI.01010519mm. (0.748")
    GR.222826-10GI.01209510.6mm. (0.417")
    GI.01211013.2mm. (0.520")
    GI.01213016.6mm. (0.654")
    GR.222826-15GI.01209515.6mm. (0.614")
    GI.01211019.5mm. (0.768")
    GI.01213020.5mm. (0.807")
    GR.283432-10GI.01611512.7mm. (0.500")
    GI.01613516.1mm. (0.634")
    GI.01616020.5mm. (0.807")
    GR.283432-15GI.01611518.8mm. (0.740")
    GI.01613523.9mm. (0.941")
    GI.01616030.4mm. (1.197")
    GR.344038-10GI.02014015.4mm. (0.606")
    GI.02016519.9mm. (0.783")
    GI.02019024.3mm. (0.957")
    GR.344038-15GI.02014023.1mm. (0.909")
    GI.02016529.6mm. (1.165")
    GI.02019036mm. (1.417")
    GR.424546-10GI.02417019.6mm. (0.772")
    GI.02419523.9mm. (0.941")
    GI.02422028.1mm. (1.106")
    GR.424546-15GI.02417029.1mm. (1.146")
    GI.02419535.3mm. (1.390")
    GI.02422041.7mm. (1.642")
    GR.465050-10GI.02820023.6mm. (0.929")
    GI.02822528mm. (1.102")
    GI.02825032.3mm. (1.1272")
    GR.465050-15GI.02820035mm. (1.378")
    GI.02822541.5mm. (1.634")
    GI.02825048mm. (1.890")

    What is the TS for?
    To key the Angle Pin Housing to prevent rotation.

    What is the tapped hole for?
    To remove the Angle Pin Housing easily with a screw.

    What material is it made of?
    1.7242 – 58 ± 2 HRC.
