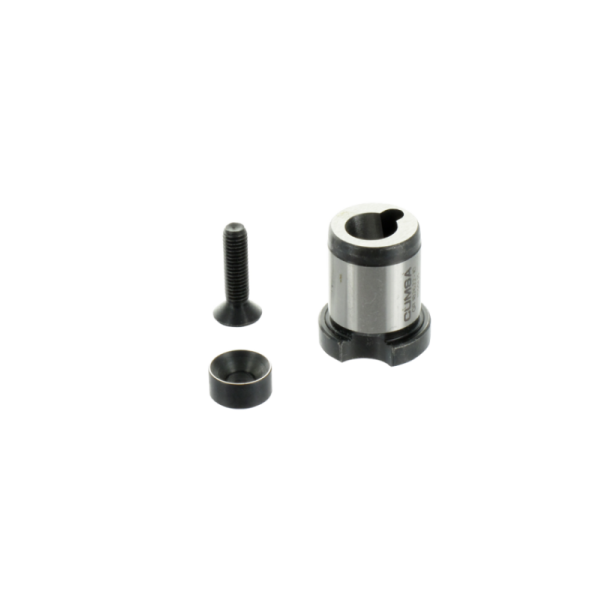

Bu ünite kalip üzerinde açili delik delme ihtiyacini ortadan kaldirir. Sadece bu üniteyi otmak için kalibin ön tarafindan bir delik delinir.
10° veya 15° olarak temin edilir.
Read moreShow less
10° veya 15° olarak temin edilir.
What angles are available?
10º and 15º.
What stroke is achievable with the Angle Pin Housing?
It depends on the angle and the length of the pin that is used:
| Ref | Angle Pin | Stroke |
| GR.182622-10 | GI.010075 | 7.5mm. (0.295") |
| GI.010090 | 10.2mm. (0.402") | |
| GI.010105 | 12.8mm. (0.504") | |
| GR.182622-15 | GI.010075 | 11.2mm. (0.441") |
| GI.010090 | 15.1mm. (0.594") | |
| GI.010105 | 19mm. (0.748") | |
| GR.222826-10 | GI.012095 | 10.6mm. (0.417") |
| GI.012110 | 13.2mm. (0.520") | |
| GI.012130 | 16.6mm. (0.654") | |
| GR.222826-15 | GI.012095 | 15.6mm. (0.614") |
| GI.012110 | 19.5mm. (0.768") | |
| GI.012130 | 20.5mm. (0.807") | |
| GR.283432-10 | GI.016115 | 12.7mm. (0.500") |
| GI.016135 | 16.1mm. (0.634") | |
| GI.016160 | 20.5mm. (0.807") | |
| GR.283432-15 | GI.016115 | 18.8mm. (0.740") |
| GI.016135 | 23.9mm. (0.941") | |
| GI.016160 | 30.4mm. (1.197") | |
| GR.344038-10 | GI.020140 | 15.4mm. (0.606") |
| GI.020165 | 19.9mm. (0.783") | |
| GI.020190 | 24.3mm. (0.957") | |
| GR.344038-15 | GI.020140 | 23.1mm. (0.909") |
| GI.020165 | 29.6mm. (1.165") | |
| GI.020190 | 36mm. (1.417") | |
| GR.424546-10 | GI.024170 | 19.6mm. (0.772") |
| GI.024195 | 23.9mm. (0.941") | |
| GI.024220 | 28.1mm. (1.106") | |
| GR.424546-15 | GI.024170 | 29.1mm. (1.146") |
| GI.024195 | 35.3mm. (1.390") | |
| GI.024220 | 41.7mm. (1.642") | |
| GR.465050-10 | GI.028200 | 23.6mm. (0.929") |
| GI.028225 | 28mm. (1.102") | |
| GI.028250 | 32.3mm. (1.1272") | |
| GR.465050-15 | GI.028200 | 35mm. (1.378") |
| GI.028225 | 41.5mm. (1.634") | |
| GI.028250 | 48mm. (1.890") |
What is the TS for?
To key the Angle Pin Housing to prevent rotation.
What is the tapped hole for?
To remove the Angle Pin Housing easily with a screw.
What material is it made of?
1.7242 – 58 ± 2 HRC.
