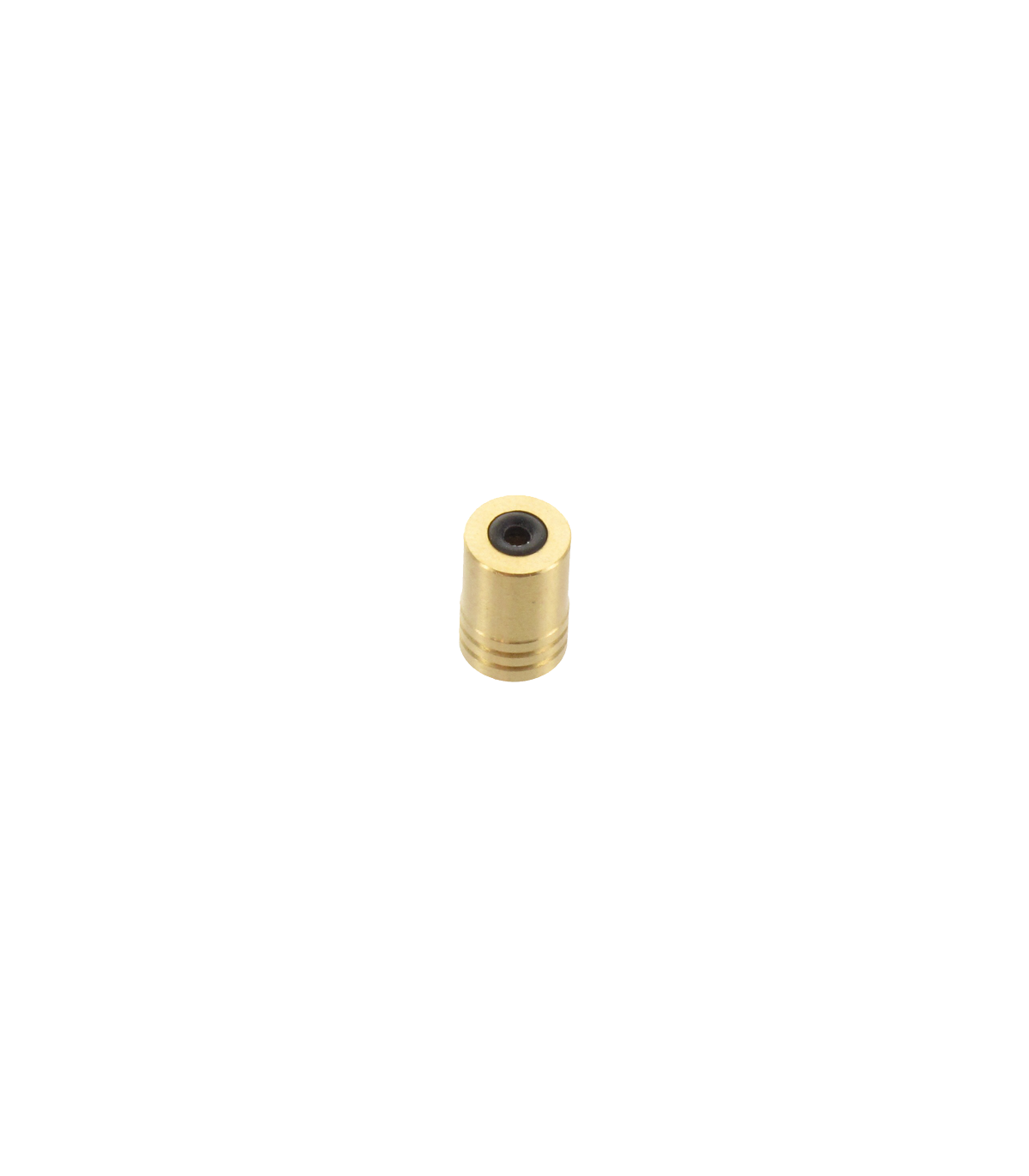

Mosaz pouzdro s vnitrním O-kroužkem zabranuje ztrátám vzduchu pri vytvárení podtlaku.
S tolerancemi pro zalisování.
Vcetne závitu pro prípadnou demontáž pouzdra.
Read moreShow less
S tolerancemi pro zalisování.
Vcetne závitu pro prípadnou demontáž pouzdra.
Must I apply the CV’s upon all ejectors?
We recommend to apply the CV to all the ejector pins, even if they are not connected to the Vacuum channel.
What is the maximum working temperature?
100ºC (212ºF). The customer can replace the NBR o'rings by Viton o'rings to use the product in higher temperatures.
If the vacuum is made through the ejectors, should they have a different tolerance?
Yes, -0.03mm (-0.0011”) to -0.04mm (-0.0016”), keeping in mind that the housing is H7, and depending on the viscosity of the plastic.
