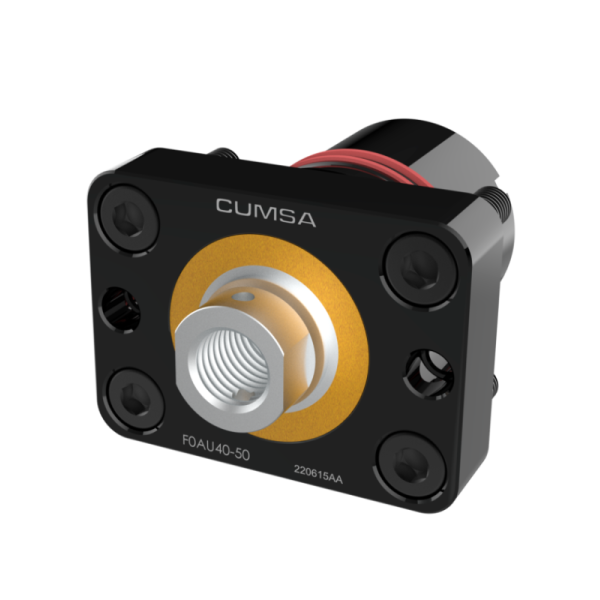

Block Cylinder Type F – Fixing Style AU

F0AU025-010

Block Cylinder Type F – Fixing Style AU

Pistão

  • 025
  • 032
  • 040
  • 050
  • 063

Curso

  • 10
  • 15
  • 20
  • 25
  • 30
  • 35
  • 40
  • 45
  • 50
  • 55
  • 60
  • 65
  • 70
  • 75
  • 80
Descrição

For molds with little space thanks to its direct mounting on the plaques, without the need to use oil hoses. Specially designed for the mold making industry.

Being integrated into the plates, it allows to have a less bulky mold, improving both its assembly in the machine and its storage.

Key points:

  • Manufactured in 1.1730, final black oxide treatment.
  • Large strokes up to 80mm in stock, strokes over 80mm are available upon request.
  • 5 different piston diameters, from 25 to 63mm.
  • Pressure 250 bar (3600PSI).
  • Temperature 180ºC (356ºF).

Create your own combination by choosing your desired piston and stroke size. For further information, download the complete Hydraulic Cylinder catalogue with a how-to-order guide included.

Read moreShow less
Dados do produto
F0AU025-010
Video

Vídeo de instalação

Vídeo explicativo
