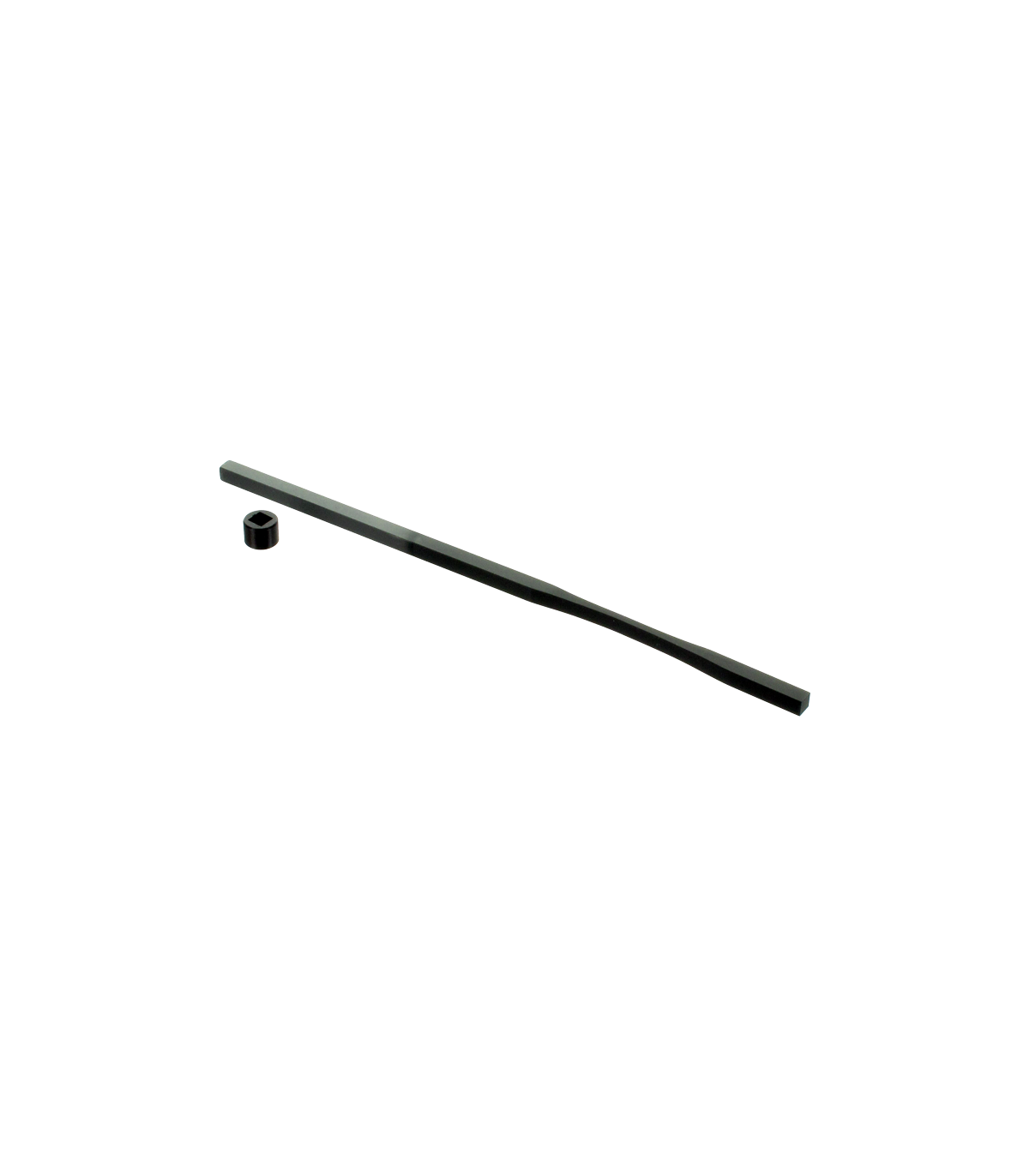

Aquesta pinça de cares paraleles permet desmotllar petits negatius en un mínim espai (només 4mm. de gruix).
Incorpora un senzill sistema de regulació a més de un recubriment de Balinit C® que suavitza el movimient i redueix el desgast.
Com a gran novetat, primer expulsa i després desemmotlla.
Read moreShow less
Incorpora un senzill sistema de regulació a més de un recubriment de Balinit C® que suavitza el movimient i redueix el desgast.
Com a gran novetat, primer expulsa i després desemmotlla.
What is lifetime of the parts?
Correctly installed sprung cores (following our catalogue installation instructions) can produce more than 1 million parts.
What is the maximum working temperature of the Flexible Cores?
The maximum working temperature is 150°C (302°F).
What properties provide Balinit C?
Balinit C is the best coating to apply to our Sprung Cores. It provides a high superficial hardness and a low friction coefficient, i.e., it protects the part and makes it slide smoothly.
What is the minimum opening dimension?
The opening of the sprung cores is a radial movement. Due to this, at the edge of the stroke, the opening is 2.5mm (0.098”). Here you can see a more detailed technical explanation.
Are there any important application details?
Yes, it is very important to give draft on the undercut, for the PF => 5º.
The radius of 0.10mm, as minimum, has to be kept in the upper surface if it is grinded or machined.
The radius of 0.10mm, as minimum, has to be kept in the upper surface if it is grinded or machined.
Is it normal to see some deviation between the head and the shaft of the PF cores?
Yes, a deviation up to 0,3mm is completely normal as the material is sprung steel and has elastic memory. The part will function correctly as the deviation will settle once the part is installed in its housing.
Quina mida máxima podem tallar de la canya?
| Ref. | Max. |
| PF04.... | 40mm. |
| PF05.... | 40mm. |
| PF06.... | 80mm. |
| PF08.... | 80mm. |
| PF10.... | 80mm. |
| PF12.... | 80mm. |
Quina mida máxima podem tallar del cap de la pinça?
| Ref. | Max. |
| PF04.... | 12mm. |
| PF05.... | 12mm. |
| PF06.... | 18mm. |
| PF08.... | 18mm. |
| PF10.... | 18mm. |
| PF12.... | 18mm. |
Can these parts be welded?
Welding is not recommended on any of the sprung core products. Welding exposes them to high temperatures which can affect the treated areas, and therefore the characteristics of the spring steel.
