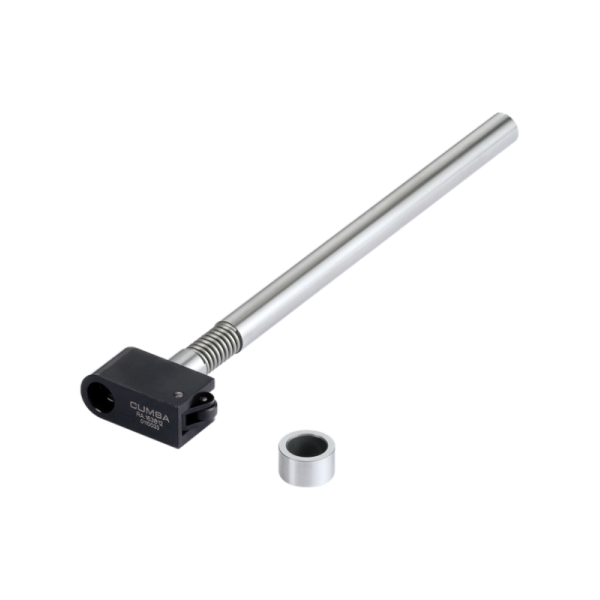

Retensor per correderes de grans dimensions, s'acciona mitjançant la guia de lliscament, eliminant així tot esforç innecessari en l'alliberament de la corredera.
Read moreShow less
How much weight can it retain?
19612N / 2000 Kg (4404lb)
Can more than one piece be applied in a cam slide?
Yes.
What is the maximum that the shaft can be cut?
189mm (7.441”)
What is the maximum working temperature of the retainer?
The maximum working temperature is 150°C (302°F).
What is the stroke of the pin?
It is 6mm (0.236”).
Are there any important application details?
Yes, there has to be a minimum of 15mm (0.591”) clearance upon the cam slide.
Is it possible to make an extension?
Yes, the customer can do it by threading the extension to the shaft of the RA, or fixing it with a dowel pin.
