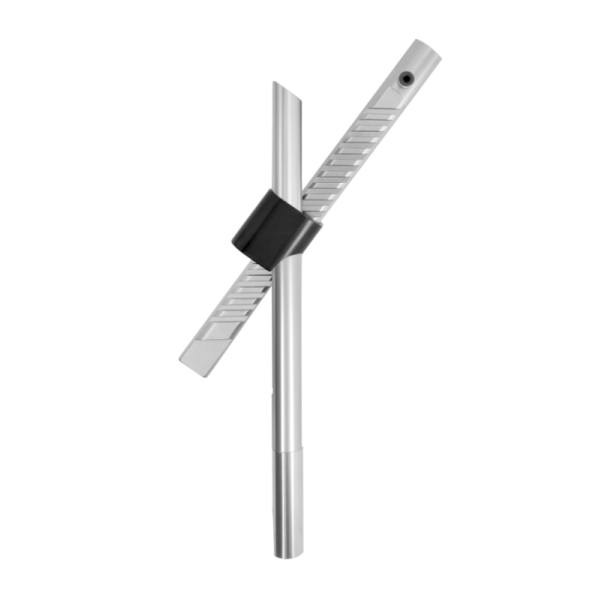

EXTENDS DOUBLE RACK SYSTEM: The DR range now offers more base angles 24º, 28º, 32º and 36º.
DEMOLDING STROKES UP TO 80MM: This product releases undercuts up to80 mm, with just 100mm of ejection stroke.
BIG SAVINGS: This solution simplifies the machining and reduces mold and machine size by an estimated overall savings of 40%.
Read moreShow less
DEMOLDING STROKES UP TO 80MM: This product releases undercuts up to80 mm, with just 100mm of ejection stroke.
BIG SAVINGS: This solution simplifies the machining and reduces mold and machine size by an estimated overall savings of 40%.
WARNING:
Please note that the 3D drawings only include one positioning tooth, and the vertical and inclined shaft's section dimensions shown do not correspond with the real machined shafts due to confidentiality issues.
Thank you!
- For the XR34: M9x0,75
- For the XR40: M12x1
- For the XR46: M16x1
If we do not want to use the extension, which is the thread of the vertical shaft?
