Unitat Compacta Punxonat

UA363616

Unitat Compacta Punxonat

Recorregut

  • 4
Descripció

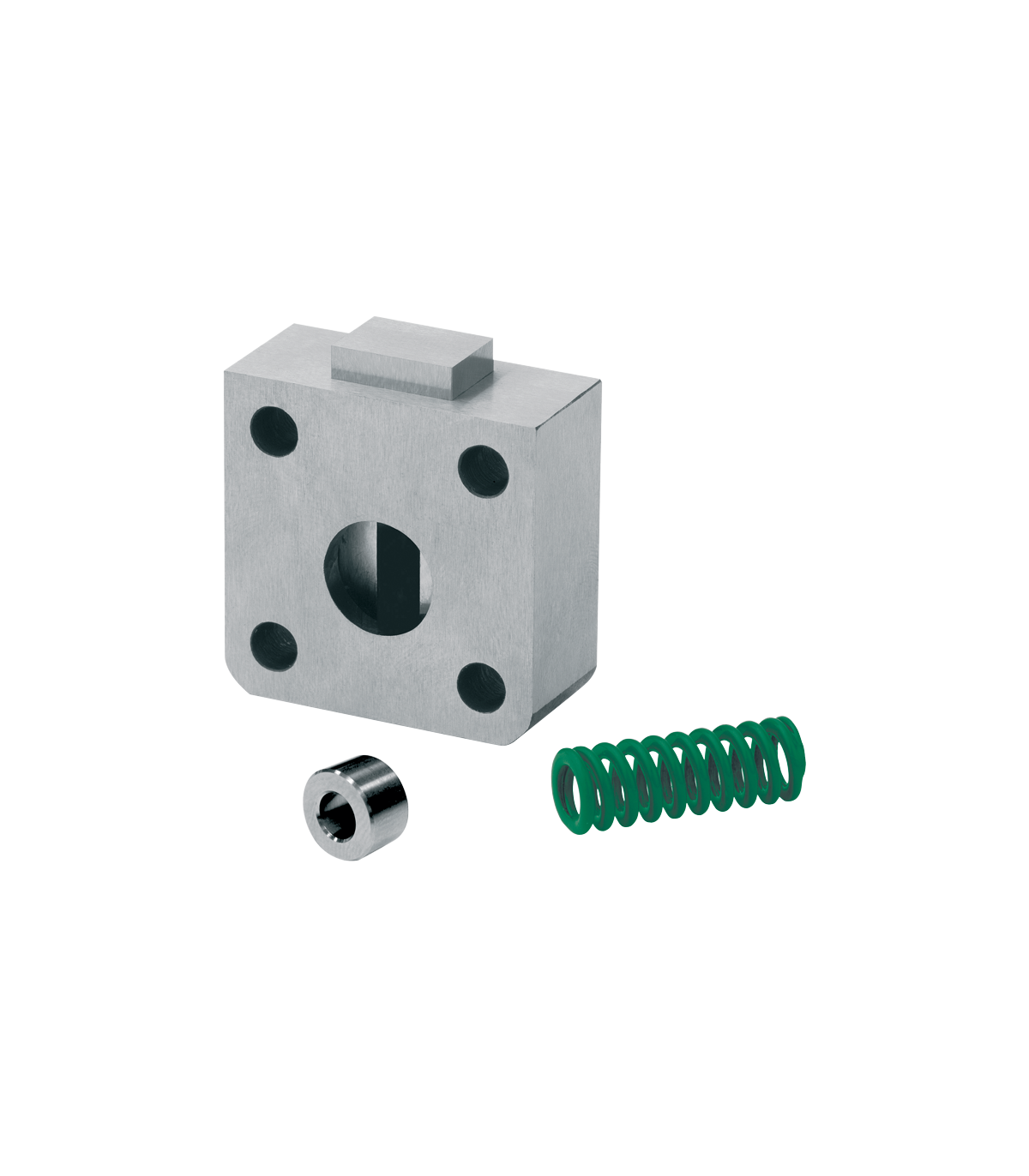

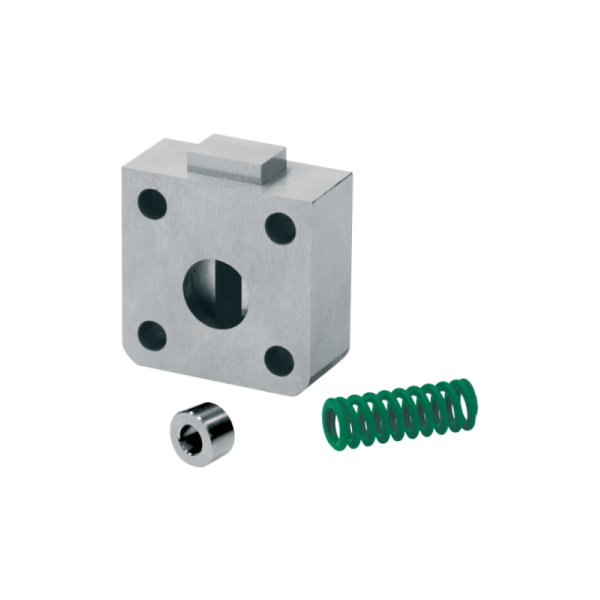

Sistema compacte dissenyat per a crear petits orificis o detalls laterals en peces de plàstic utilitzant el moviment d'obertura i tancament del motlle.


Accionada per ressorts estàndard amb una força de retracció de 7kg i una carrera de 4mm, la unitat s'instal·la externament per a la seva fixació lateral.


La seva instal·lació en una sola placa redueix l'espai necessari i permet un mecanitzat vertical senzill, sense necessitat d'ajustos entre les plaques del nucli i de la cavitat.


Totalment accessible des de l'exterior del motlle, es pot substituir i mantenir fàcilment directament des de la línia de separació.


En tractar-se d'un dispositiu independent muntat a la placa del nucli, només és necessari ajustar el passador. Els ressorts estàndard del mercat garanteixen un fàcil manteniment i substitució.

Read moreShow less
Detalls del producte
UA363616
Questions(FAQs)
    How much stroke does it have?
    4mm (0.157”).

    How the unit is fixed?
    By 4 screws.

    What is the lifetime of the spring?
    500.000 cycles.

    Can the spring be removed?
    Yes it can, by dissembling the part from the tool.

    Is it a standard spring?
    Yes it is (ISO 10243).

    What is the maximum working temperature for the unit?
    The maximum working temperature is 150°C (302°F)

    Is it possible to key the pins?
    Yes it is, there is a groove of 0.50mm (0.019”) to key the head of the ejector pin.

    Are there any important application details?
    Yes, the housing for the spring of 20.50mm (0.807”) of length.

    Es pot instal·lar inclinada respecte a la línia de partició?
    Aquest sistema està pensat per funcionar sempre a 90º de la línia de partició. CUMSA no recomana un altre tipus de instal·lació perquè la força no s'aplicaria de forma uniforme i l'expulsor no podria realitzar tot el recorregut.
